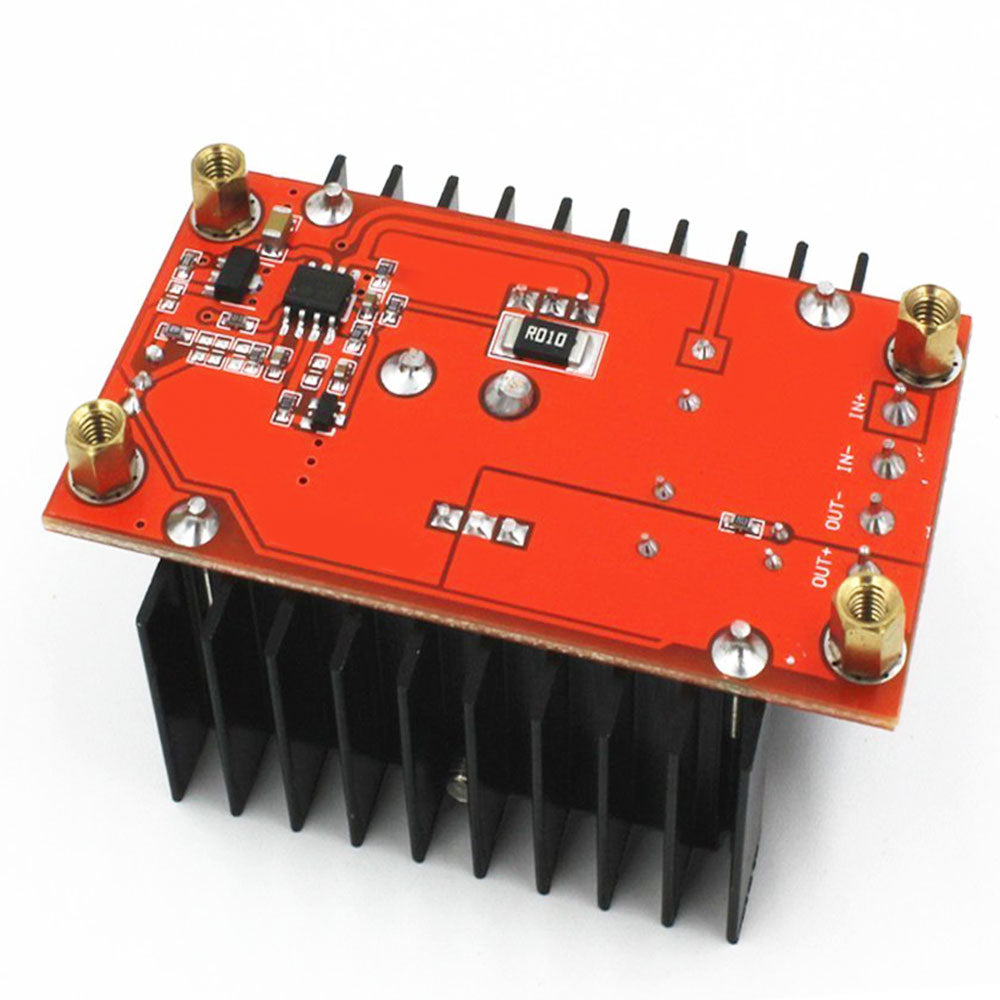

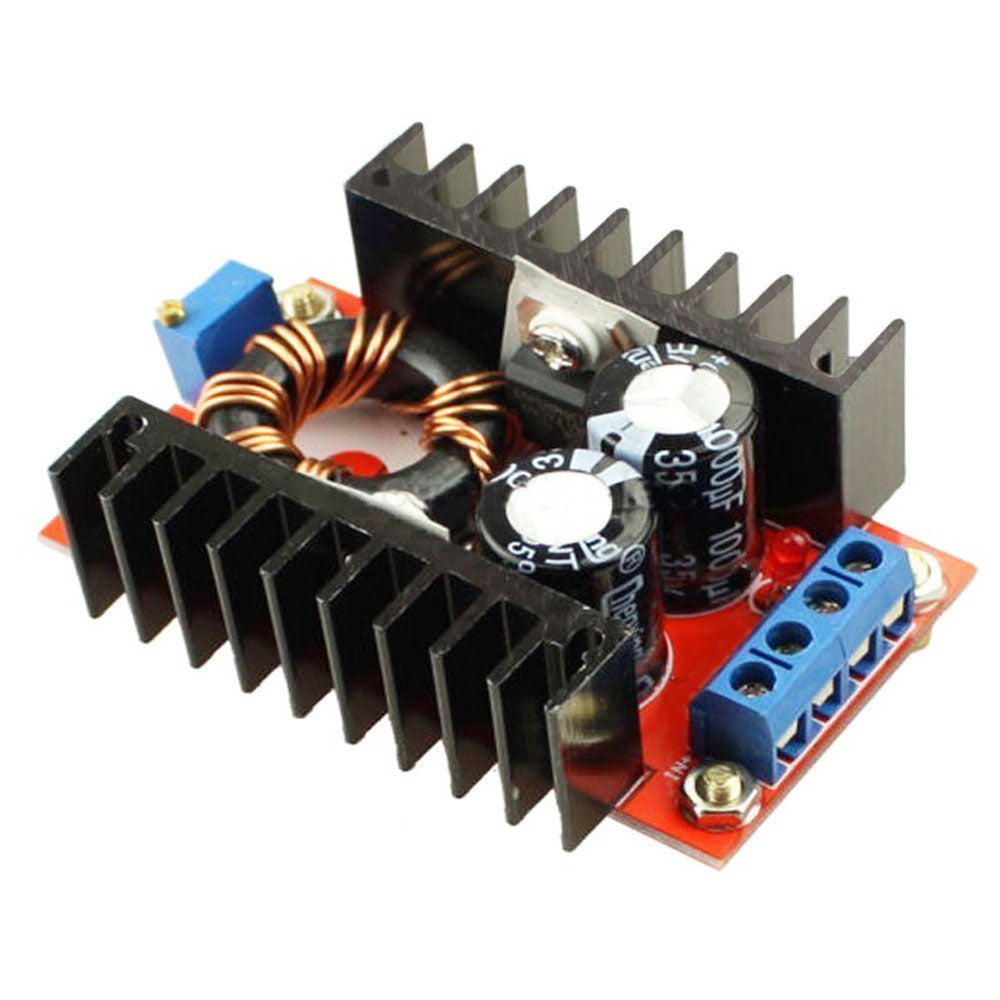

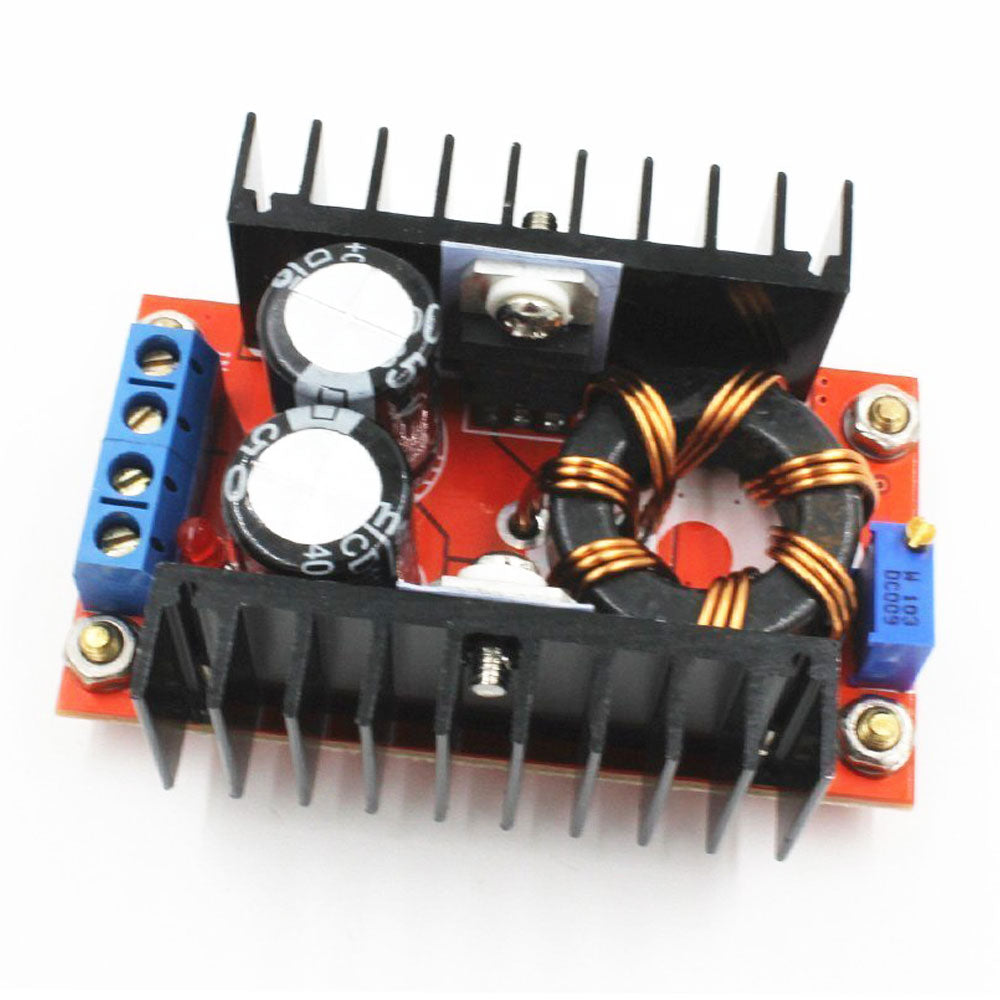

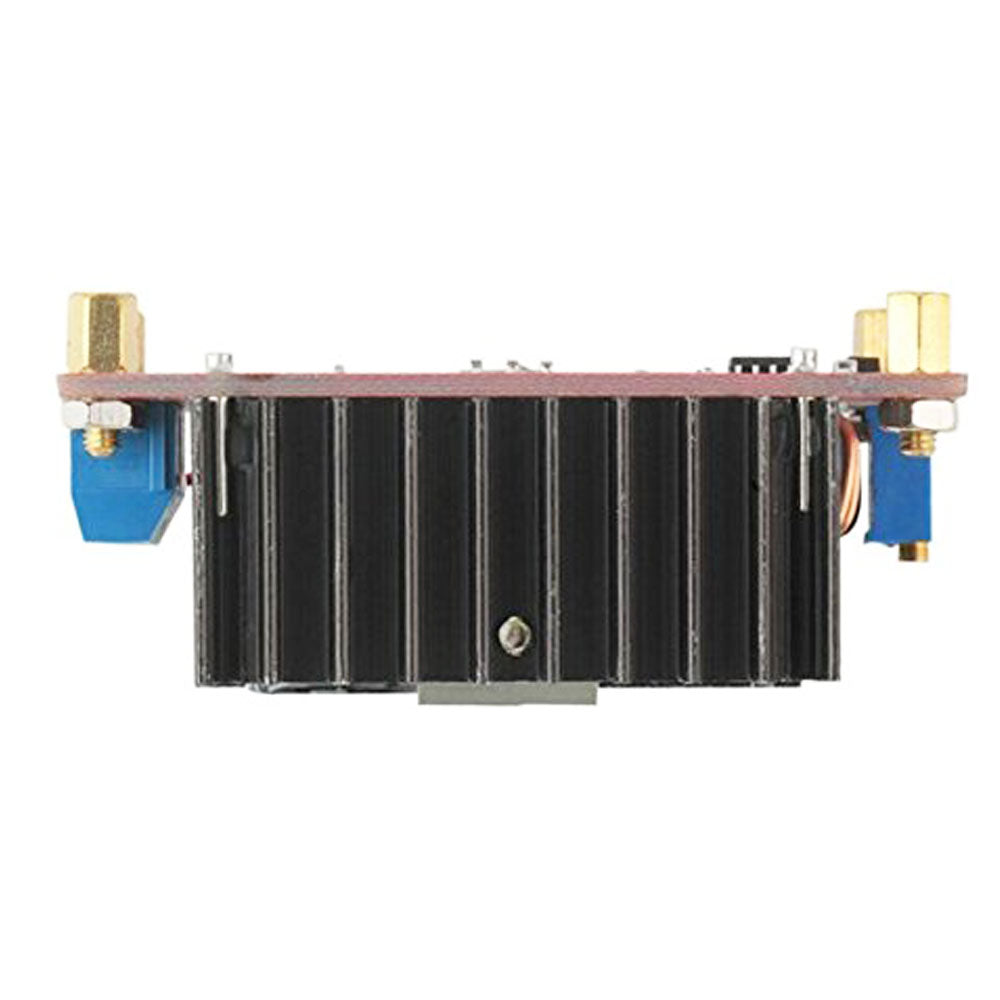

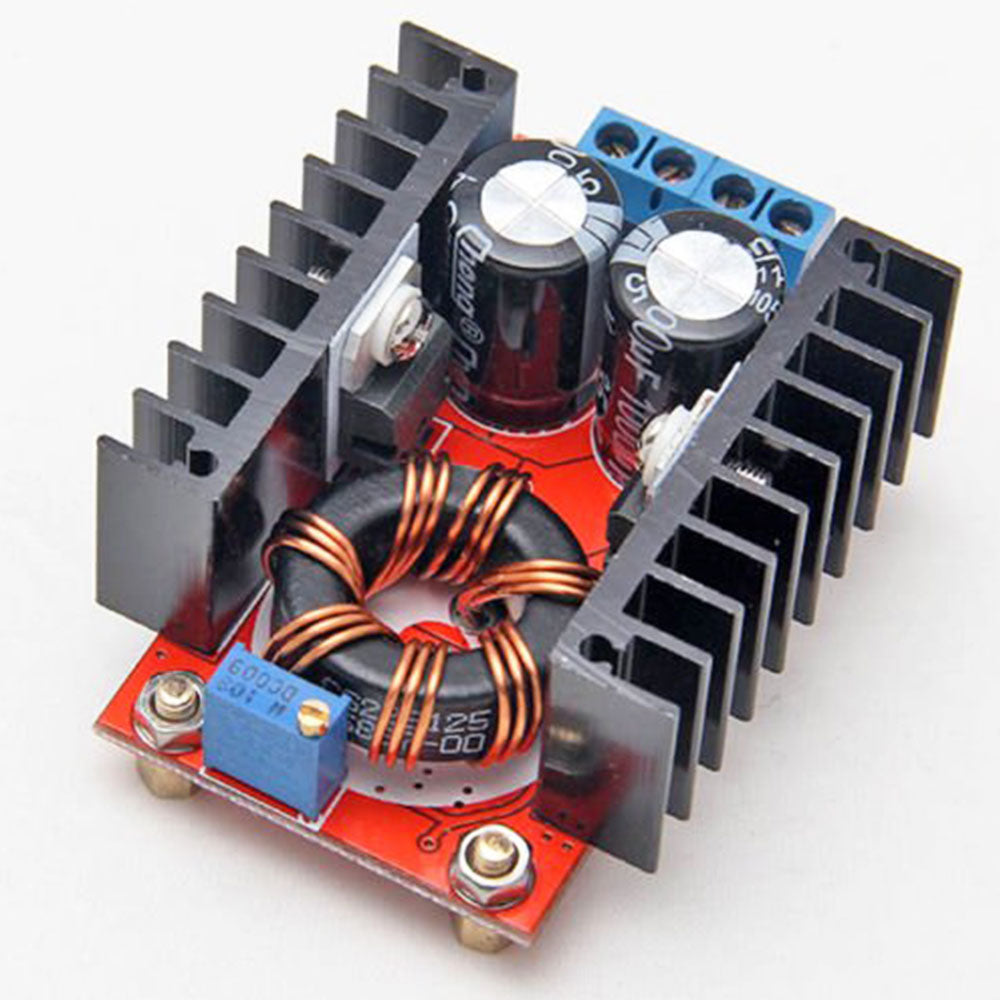

5PCS 150W DC-DC 10-32V to 12-35V Step Up Boost Converter Module Adjustable Power Voltage

$24.99

$15.99

Shipping Policy | Refund Policy

Featrure:

★ Easy to drive 65W 90W dual-core notebook. Use a 12V battery drive 19V 3.42A notebook, the module temperature about 45 ℃

Conversion efficiency: 94% (For reference: when Input 19V 2.5A Output 16V)

Output Ripple: 2% (MAX) 20M-bandwidth

Operating Temperature: Industrial (-40℃ to +85℃) (ambient temperature exceeds 40°c, lower power use, or to enhance heat dissipation)

Full load temperature rise: 45℃

No-load current: 25mA typical

Voltage regulation: ± 0.5%

Dynamic response speed: 5% 200uS

Short circuit protection: None (Please Install fuses and protection circuits at Input port.)

Input Reverse Polarity Protection: None (please comply with a reverse protection or connect a diode at input parts)



Specifiction:

Input voltage: DC 10V-32V

Output voltage: DC12V-35V(adjustable)

Input Current: 16A (MAX) (Please enhance heat dissipation if more than 10A)

Output Current: 10A (MAX)

Output power: natural cooling 100W (MAX),  strengthening cooling 150W (MAX) real power

Module Properties: non-isolated step-up module (BOOST)

Size: 65mm x 35mm x 21mm



Package Includes:

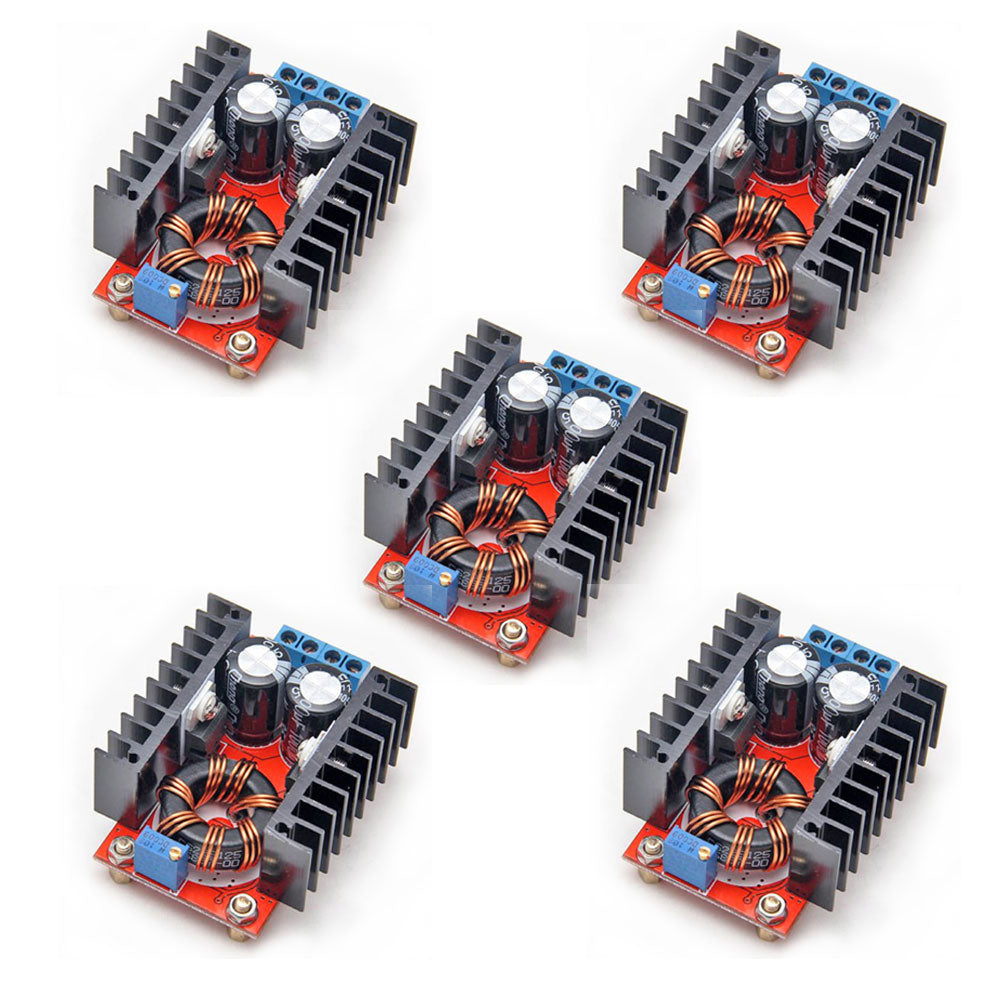

5 x 150W Boost Converter
