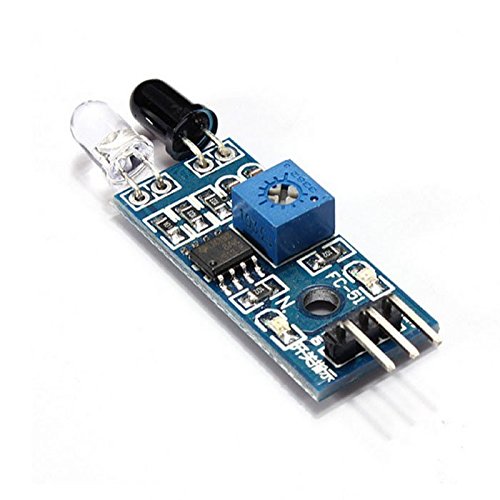

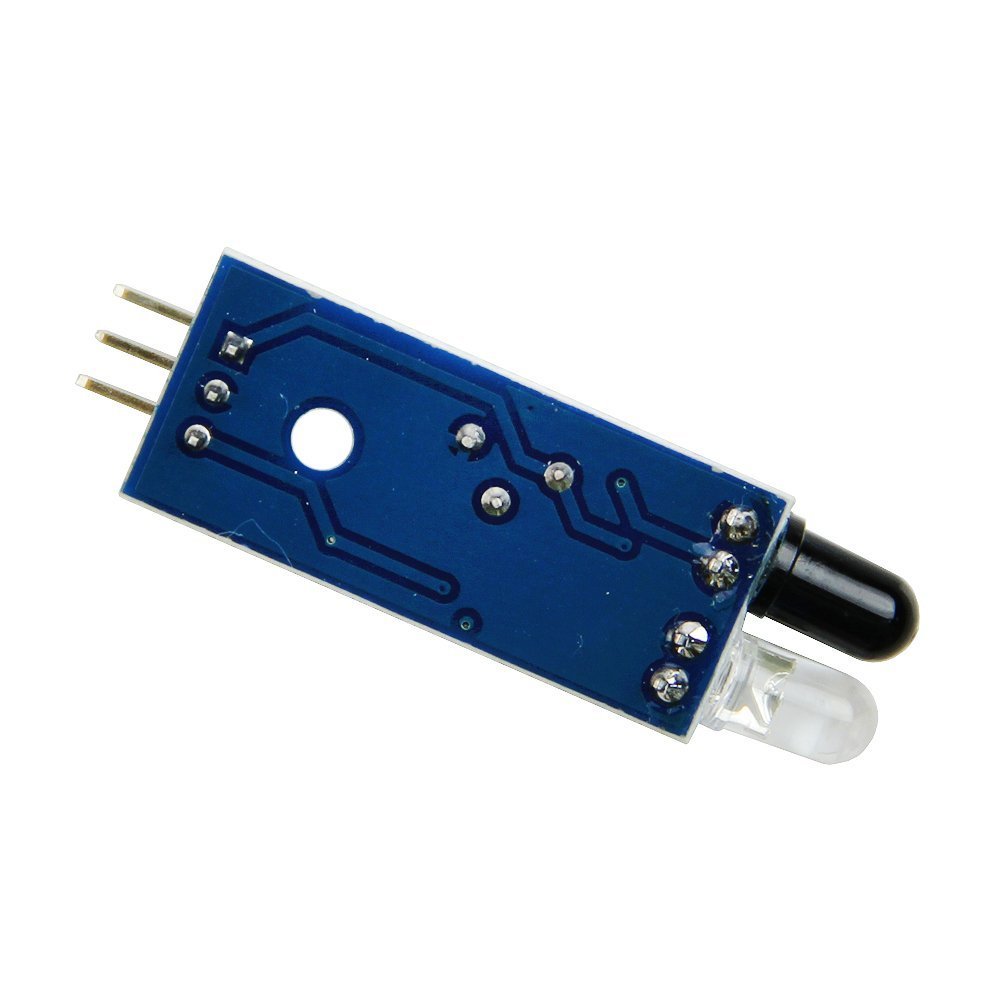

IR Obstacle Avoidance Module for Arduino V2.0 Robot Car(model#2016000400)

$3.50

Specification

  • The output port OUT sensor module can be directly connected to the microcontroller IO port , you can directly drive a 5V relay ;
  • the module detects the distance 2 ~ 30cm, detection angle 35 °, the distance can detect potential is adjusted
  • Can be used for 3-5V DC power supply modules
  • When the power is turned on, the red power indicator light
  • Using the comparator LM393
  • Interface :
    1. VCC: External 3.3V-5V voltage (can be directly connected to 5v MCU and 3.3v MCU)
    2. GND: GND External
    3. OUT: Small board digital output interfaces (0 and 1)
  • Connection : VCC-VCC; GND-GND; OUT-IO
  • With the screw holes of 3mm , easy fixed installation
  • Board Size : 3.1CM * 1.5CM / 1.22 * 0.59″
