Optical Interrupter Motor Speed Detection Sensor + Encoder for Arduino Robot 5pcs/set OSOYOO

1. Feature for LM393 Motor Speed Detection Sensor

• Operating voltage: 3.3V-5V, output form: digital switching output (0 and 1)
• Mounting holes on both ends with M3 screws.
• Use:

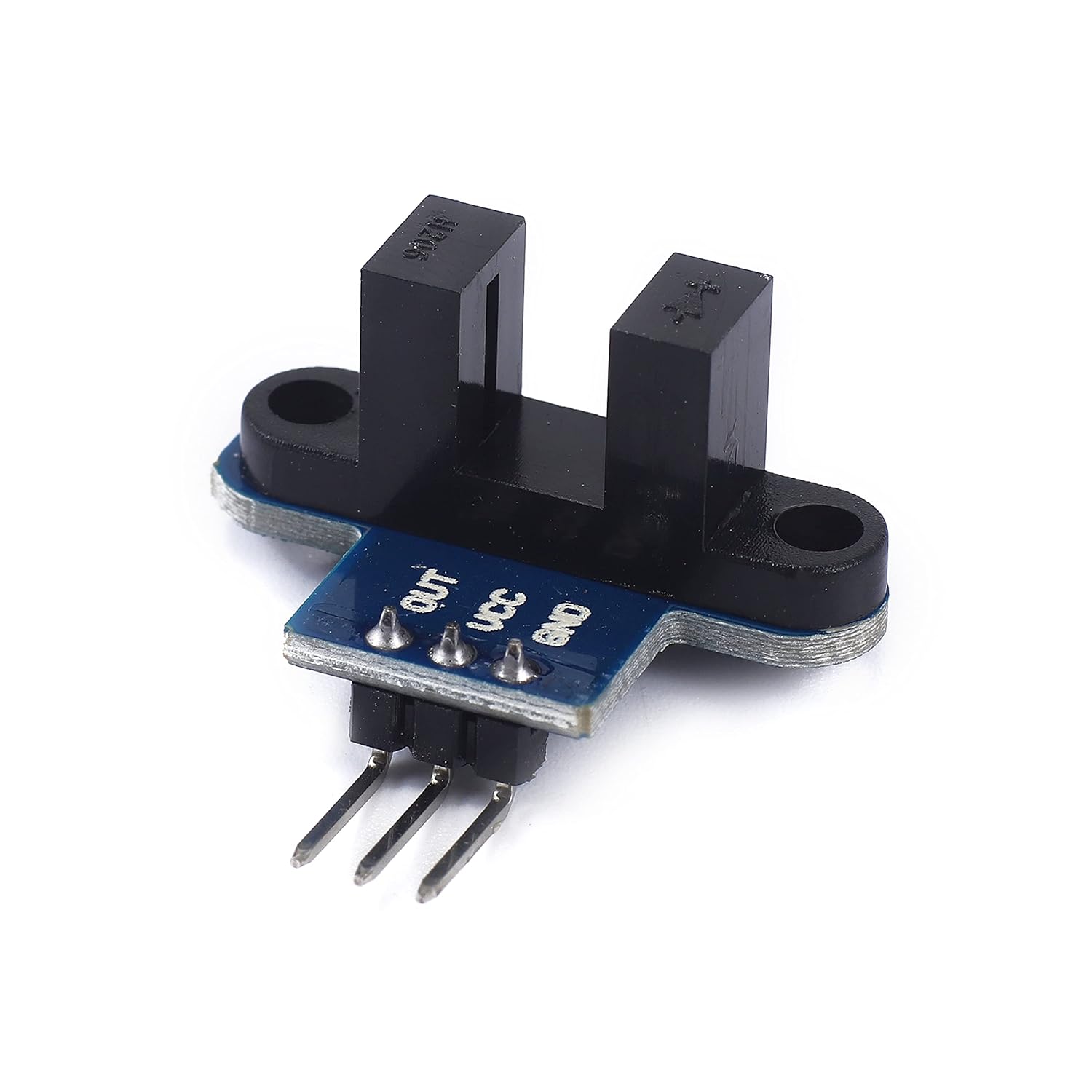

1.  VCC is the positive input port of the power supply, which can be connected to a voltage of 3.3V~5V
2. GND is the negative input port of the power supply.
3. OUT is the signal output port, which is connected to the I/O port of the single-chip microcomputer. Generally, it is connected to an external interrupt.

2. Acrylic Encoder

• Diameter: 26mm
• 20 grid

Package includes:
5 x Motor Speed Detection Sensor
5 x Encoders

Tutorial Link:
https://osoyoo.com/2022/06/08/using-lm393-speed-sensorencoder-to-test-speed/
