OSOYOO 10.1" MIPI DSI Touchscreen for Raspberry Pi 5/4/3 & ESP32-P4 – 800×1280 IPS, Case & Stand Included

10.1" 800×1280 IPS MIPI DSI touchscreen for Raspberry Pi and ESP32-P4. A large 10.1-inch high-resolution IPS touchscreen that connects through the DSI (MIPI) port, so your HDMI, USB and GPIO signal pins stay free for the rest of your project. It ships with a back housing case and a detachable stand, ready for dashboards, control panels, kiosks, smart-home hubs and industrial HMI.

Please note: unlike OSOYOO's 800×480 DSI screens, this 10.1" screen requires a driver. Installation is easy, and drivers are provided for Raspberry Pi OS and Ubuntu — only the latest Bookworm system is supported (kernel 6.12 or later, released 2025-05-13). See the setup guide linked below and select the tutorial for your OS.

Why choose this screen

• Uses the DSI/MIPI port only: no HDMI cable and no USB touch cable. Video and touch both run through the DSI cable, freeing up your Pi's HDMI port for other uses. It takes just 5V and GND from the GPIO header, leaving every GPIO signal pin free.

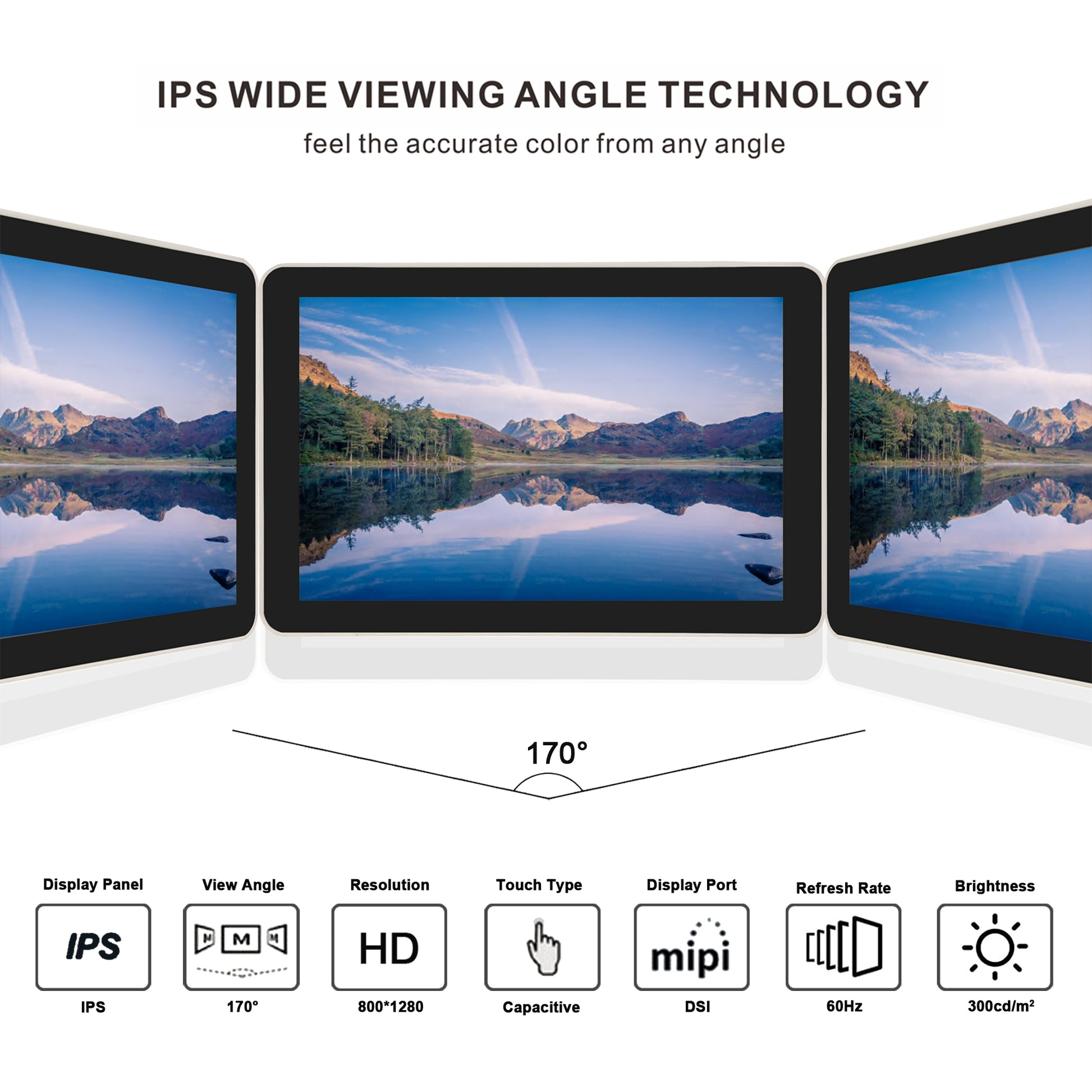

• High resolution, big touch area: 800×1280 IPS at up to 60Hz, with 85° viewing angles in every direction, so colours stay consistent from almost any perspective.
• Durable touch surface: G+G capacitive touch panel with 6H tempered glass for scratch resistance and long-lasting clarity.

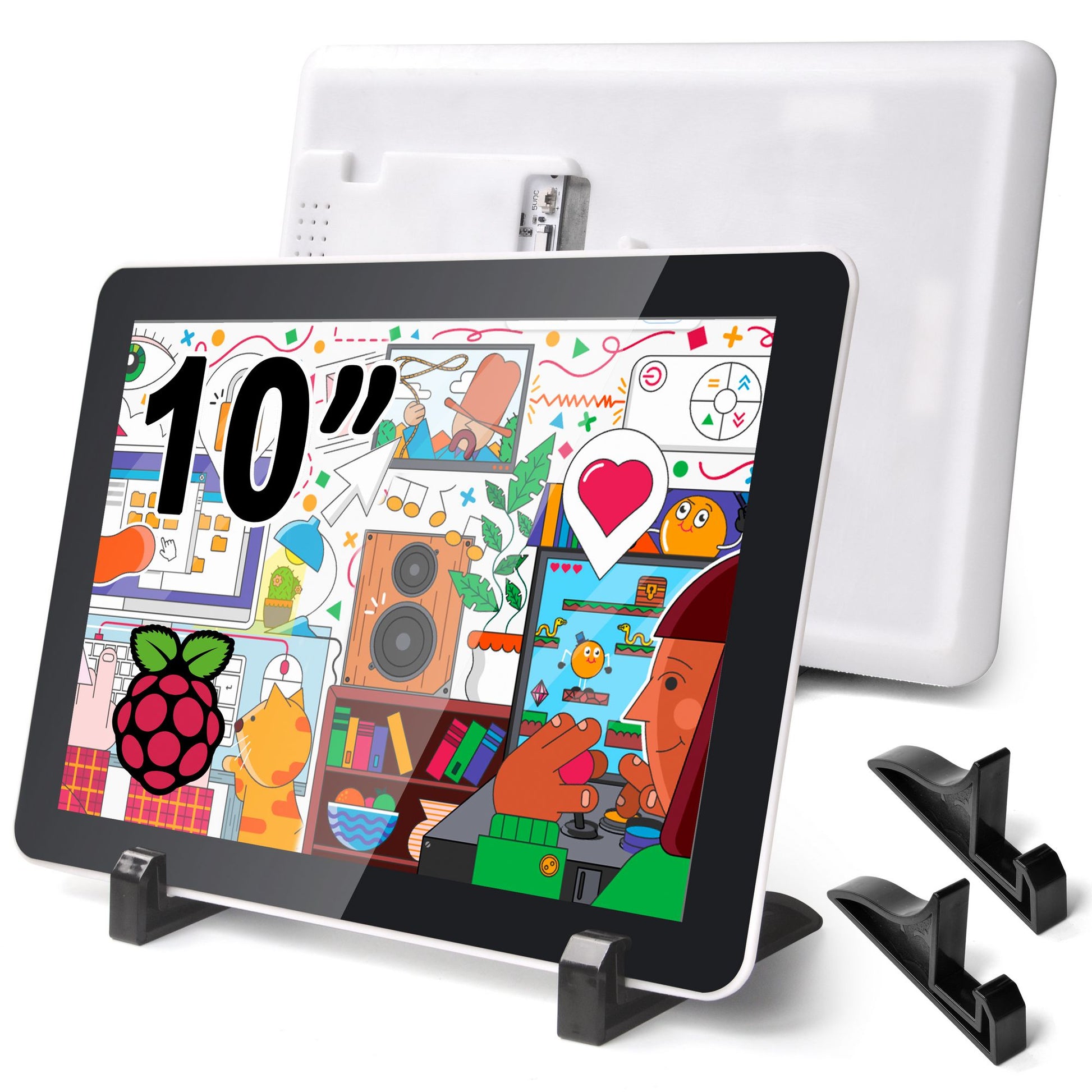

• All-in-one portable design: the custom-designed, non-detachable back case securely mounts your Pi (models 2/3/4/5), and the tool-free, detachable stand offers sturdy support wherever you go — a clean, grab-and-go workstation in seconds.

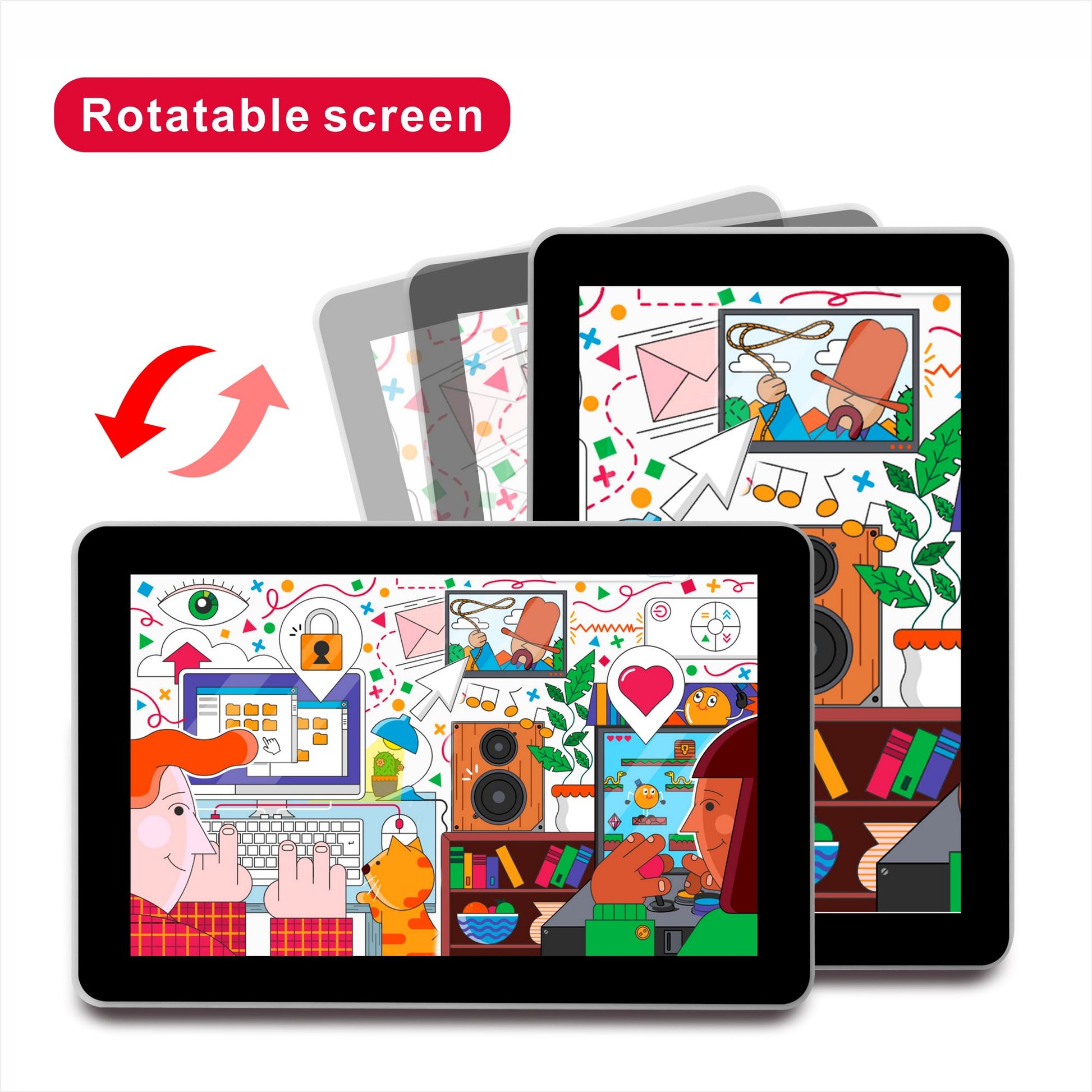

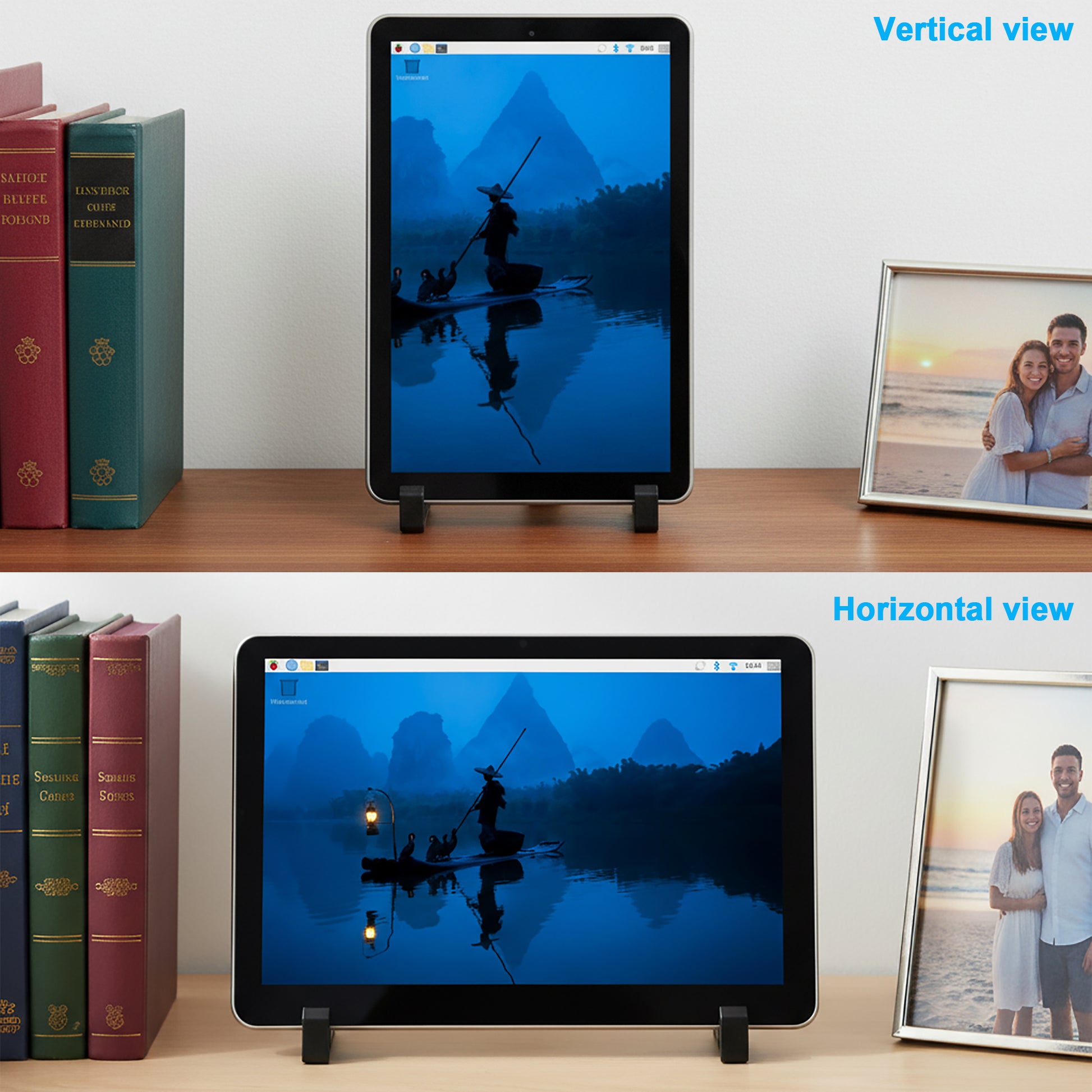

• Portrait native, landscape ready: native HD portrait resolution, perfect for developers; rotate to landscape in the OS settings.
• Not just Raspberry Pi: works with Espressif's official ESP32-P4 boards and compatible ESP32-P4 boards.
• Real engineering support: our engineers answer setup and integration questions, with volume discounts of up to 18% for projects and OEMs.

Specifications

• Screen size: 10.1 inches
• Resolution: 800×1280 (portrait native, can be rotated to landscape)
• Panel: IPS TFT (normally black), G+G
• Brightness: 250 nits typical
• Viewing angle: 85° in all directions (85/85/85/85)
• Touch: capacitive, 6H tempered glass cover

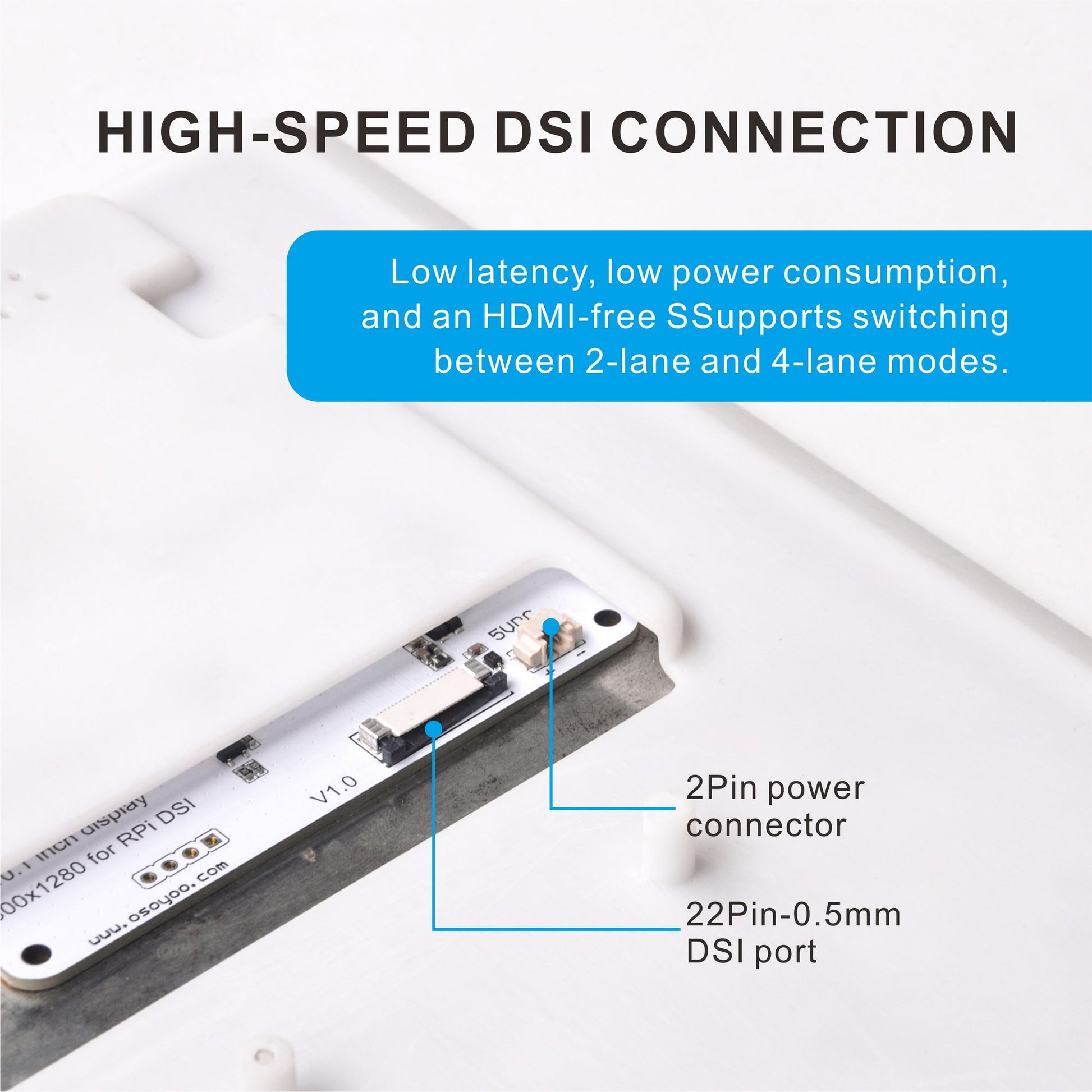

• Interface: 2-lane / 4-lane MIPI DSI
• Refresh rate: up to 60Hz
• Power: 5V, 0.5A (input current must be ≥ 0.5A)

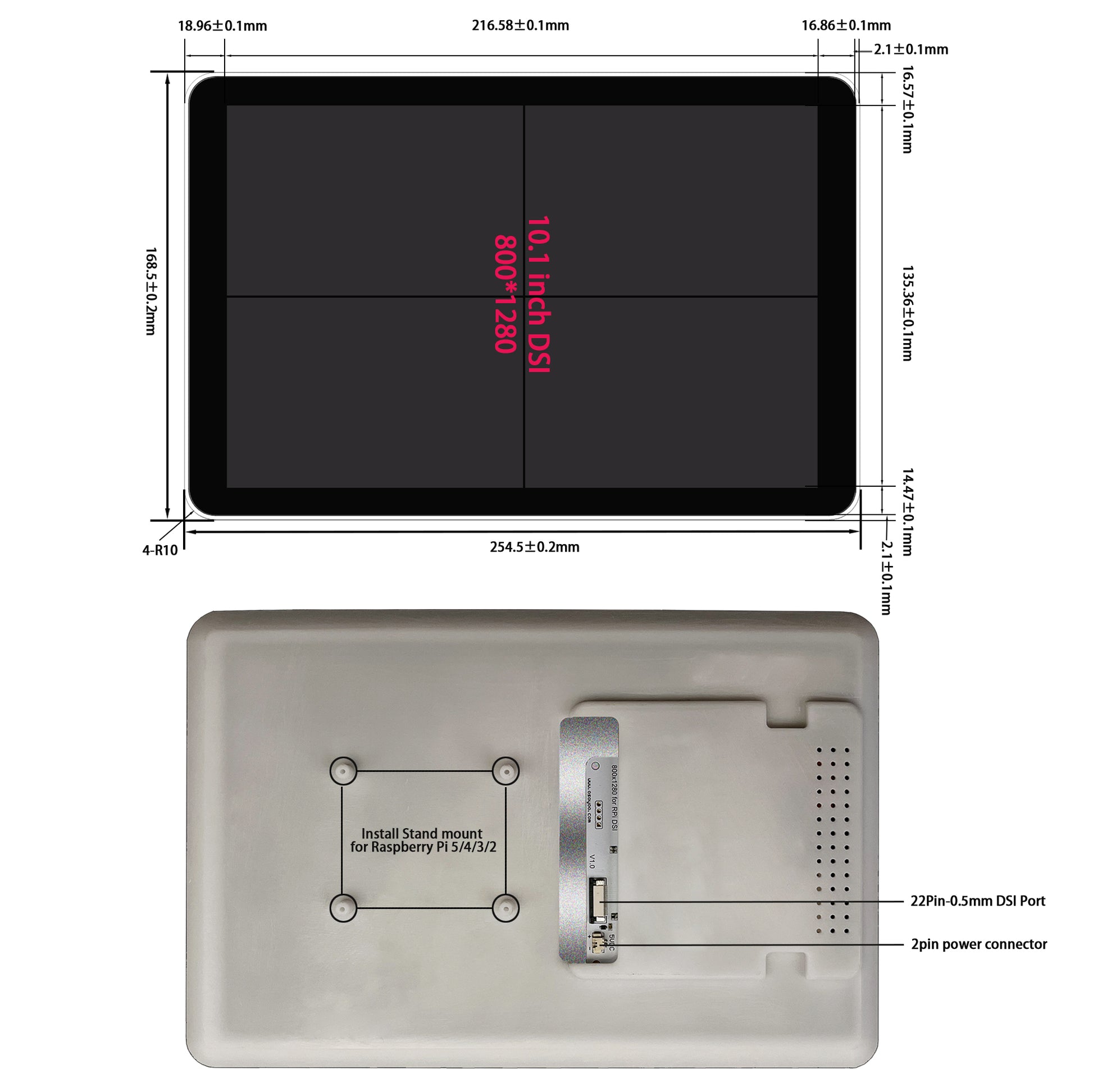

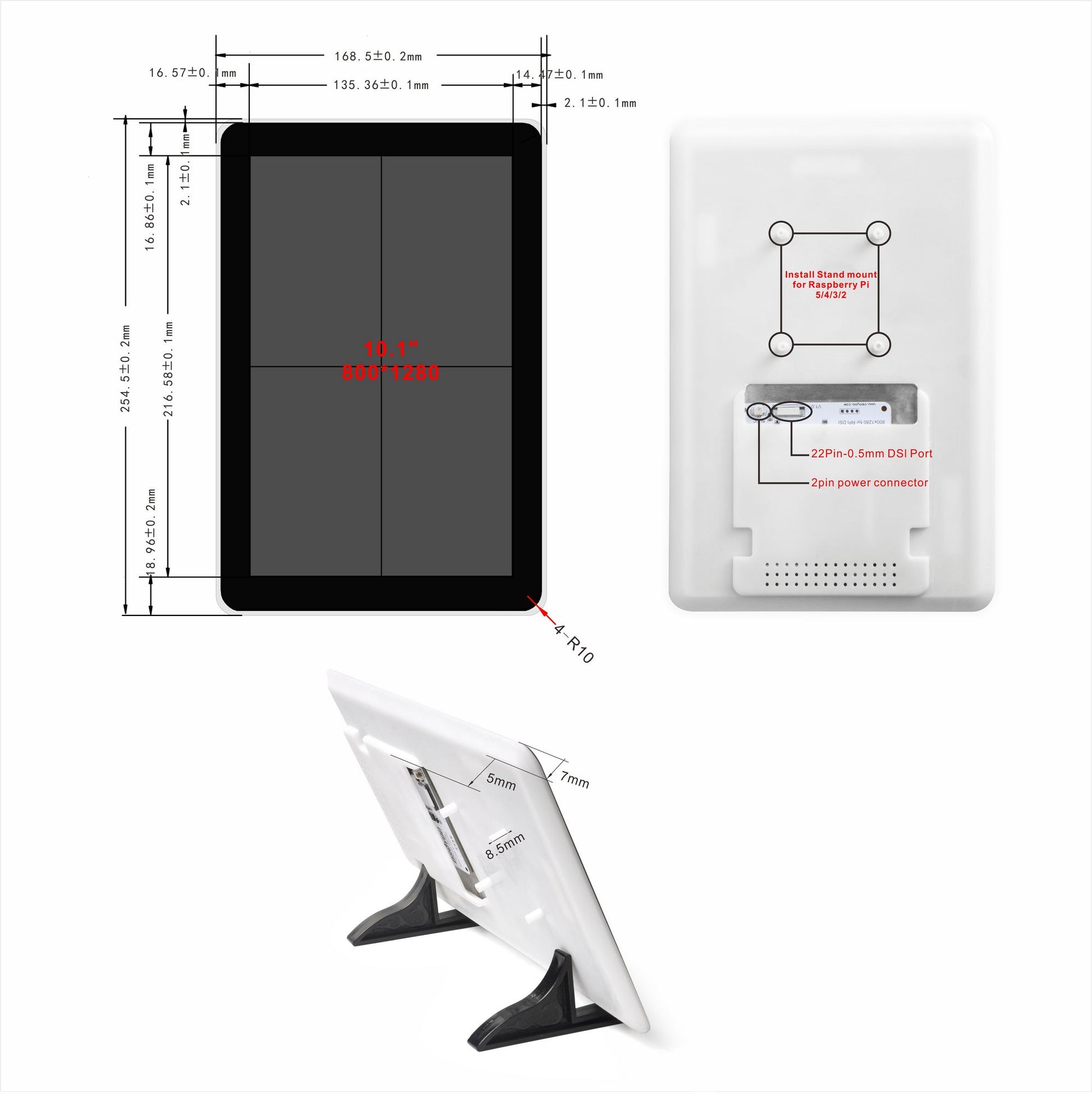

• Dimensions (with case): 168.5 × 254.5 × 15.5 mm
• Active area: 135.36 × 216.58 mm
• Weight: 525 g
• Operating temperature: 0–50 °C; storage temperature: −10–70 °C

Compatibility

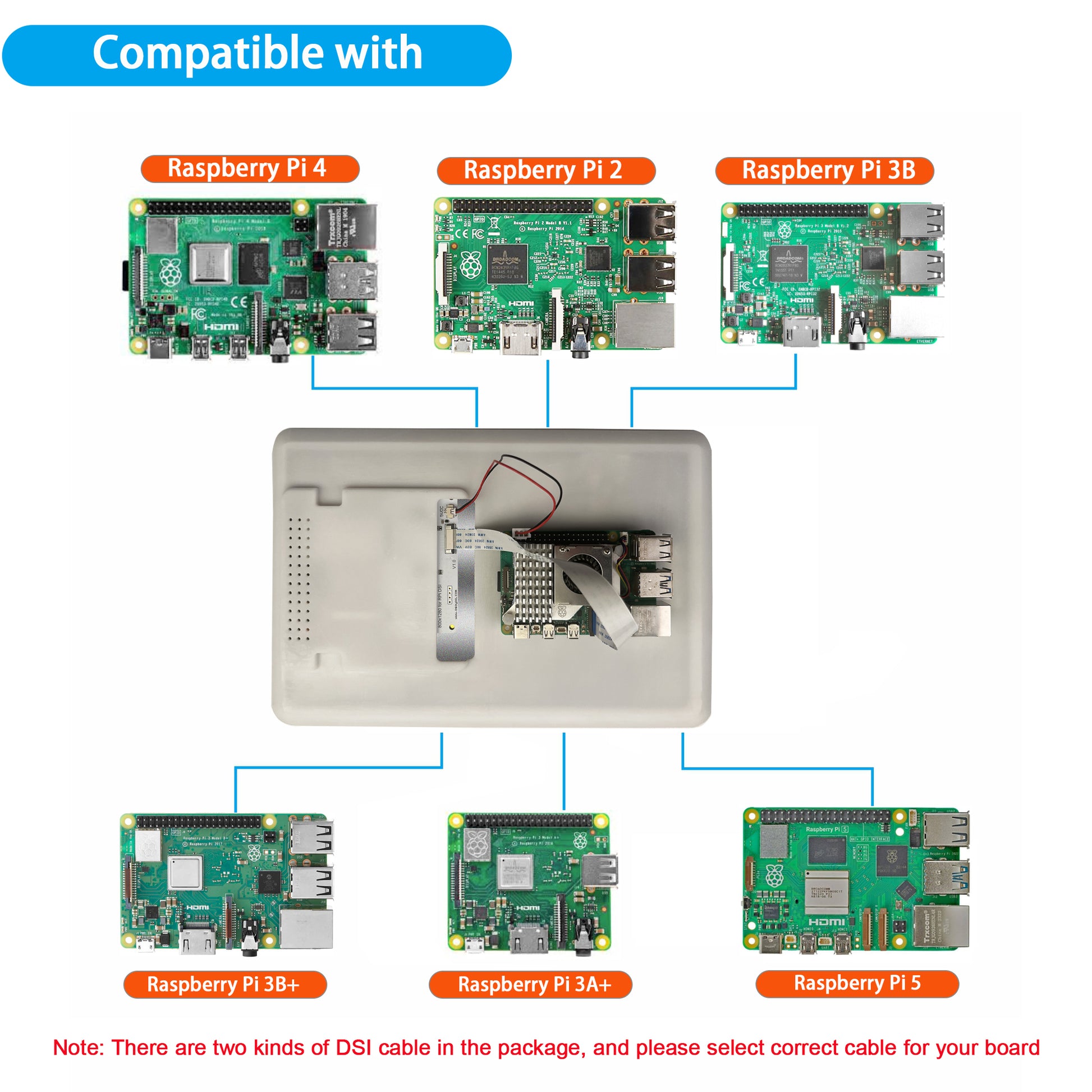

• Raspberry Pi boards: Raspberry Pi 5, 4B, 3B+, 3B, 3A+, 2 (all Raspberry Pi computers with a DSI interface)
• ESP32-P4: Espressif official ESP32-P4 boards and compatible boards

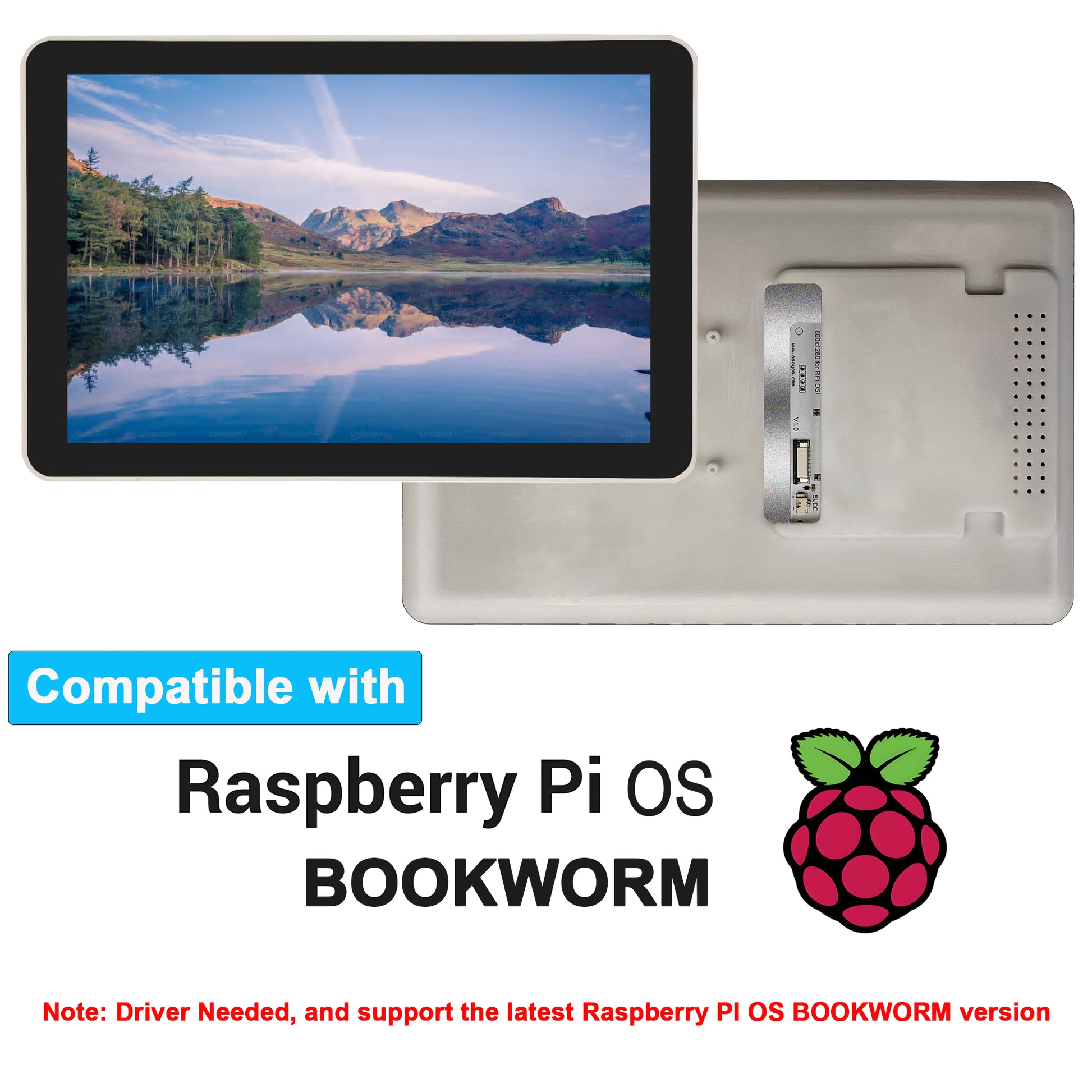

• Operating systems: Raspberry Pi OS Bookworm / Trixie (64-bit desktop, kernel 6.12 or later); Ubuntu 26.04

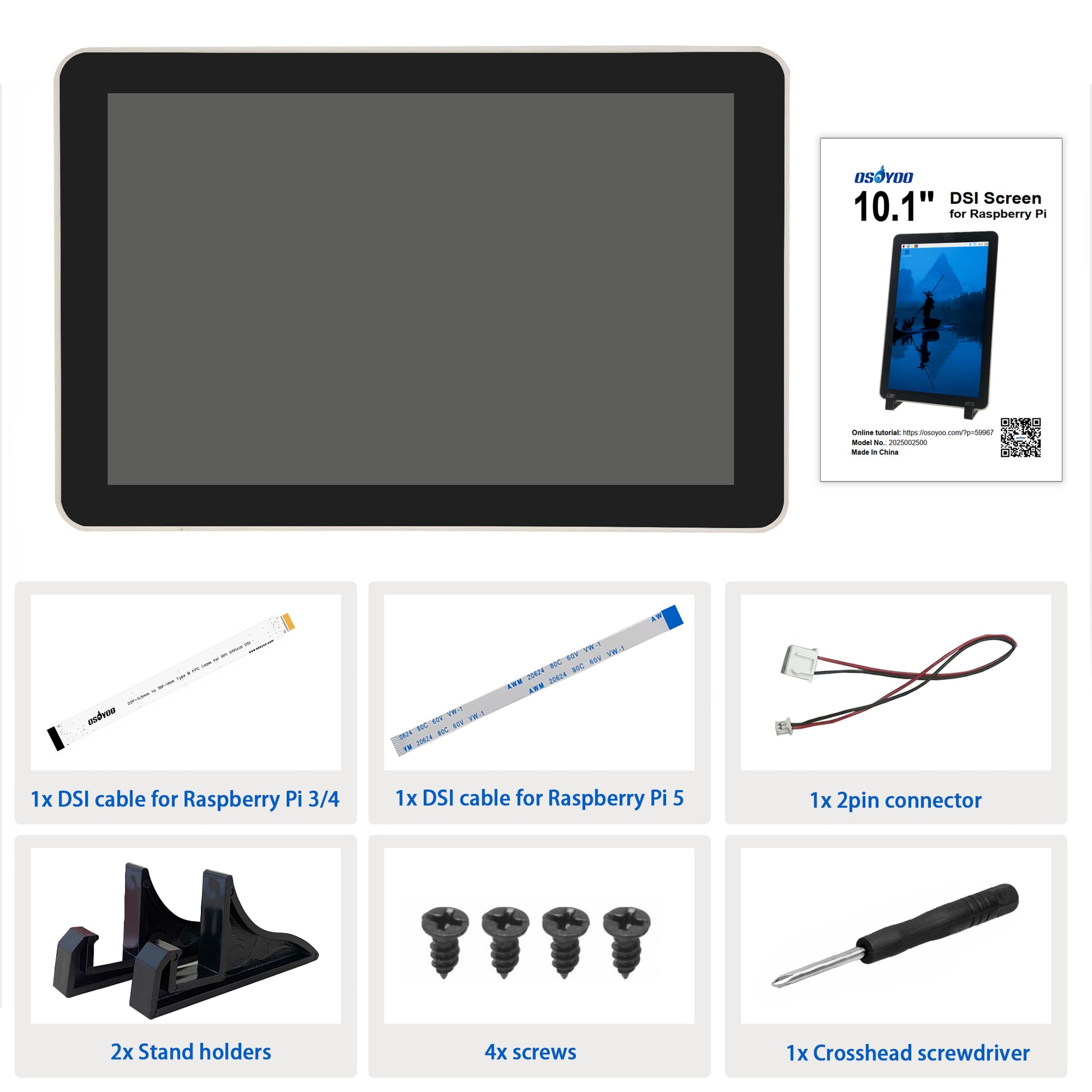

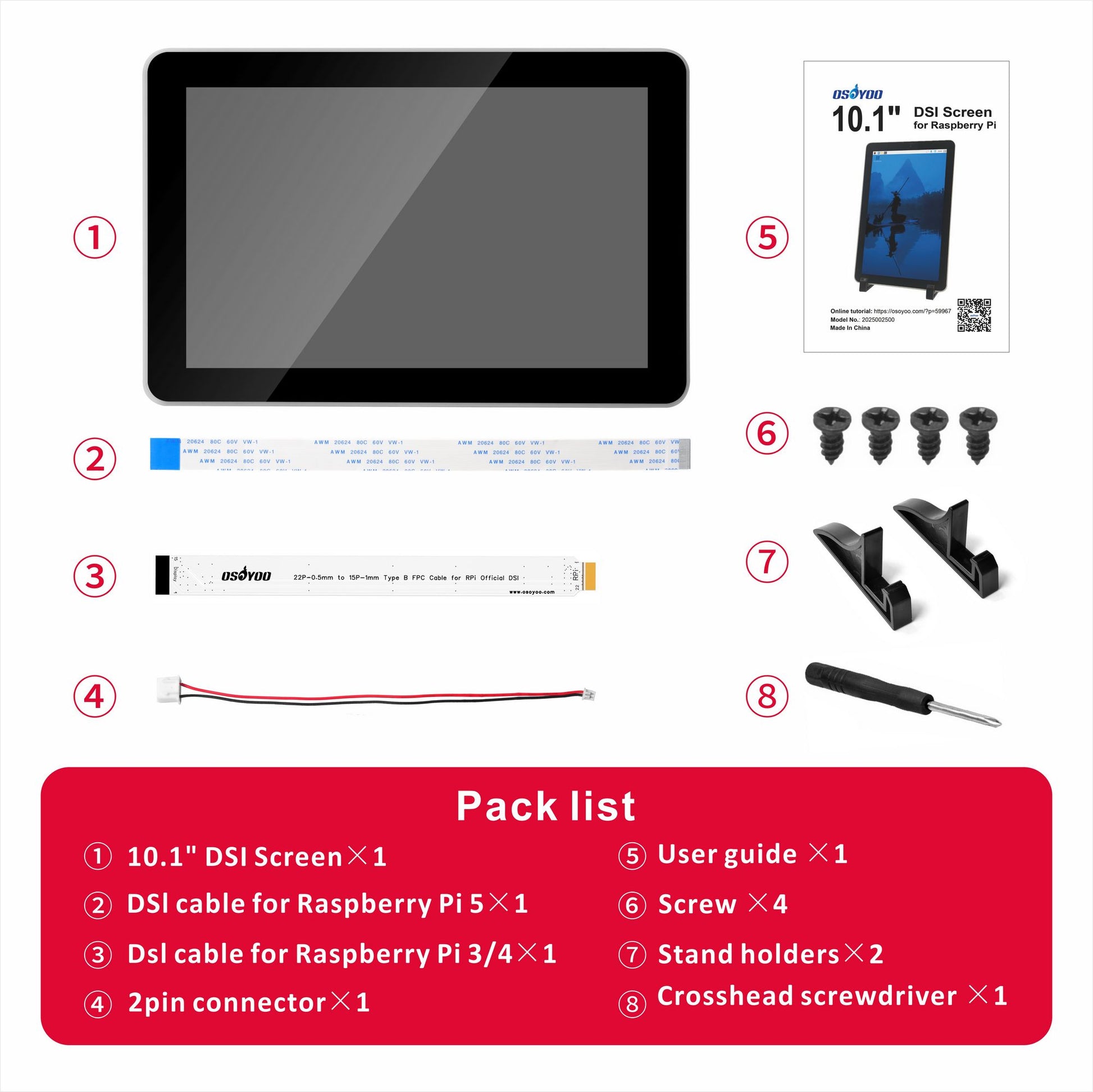

What's in the box

• 1 × 10.1" 800×1280 IPS DSI touchscreen with back housing case
• 1 × detachable stand
• 1 × 22-pin 0.5mm DSI cable (Raspberry Pi 5)
• 1 × 15-pin-to-22-pin DSI cable (Raspberry Pi 4 / 3)
• 1 × 2-pin power cable
• M2.5 mounting screws

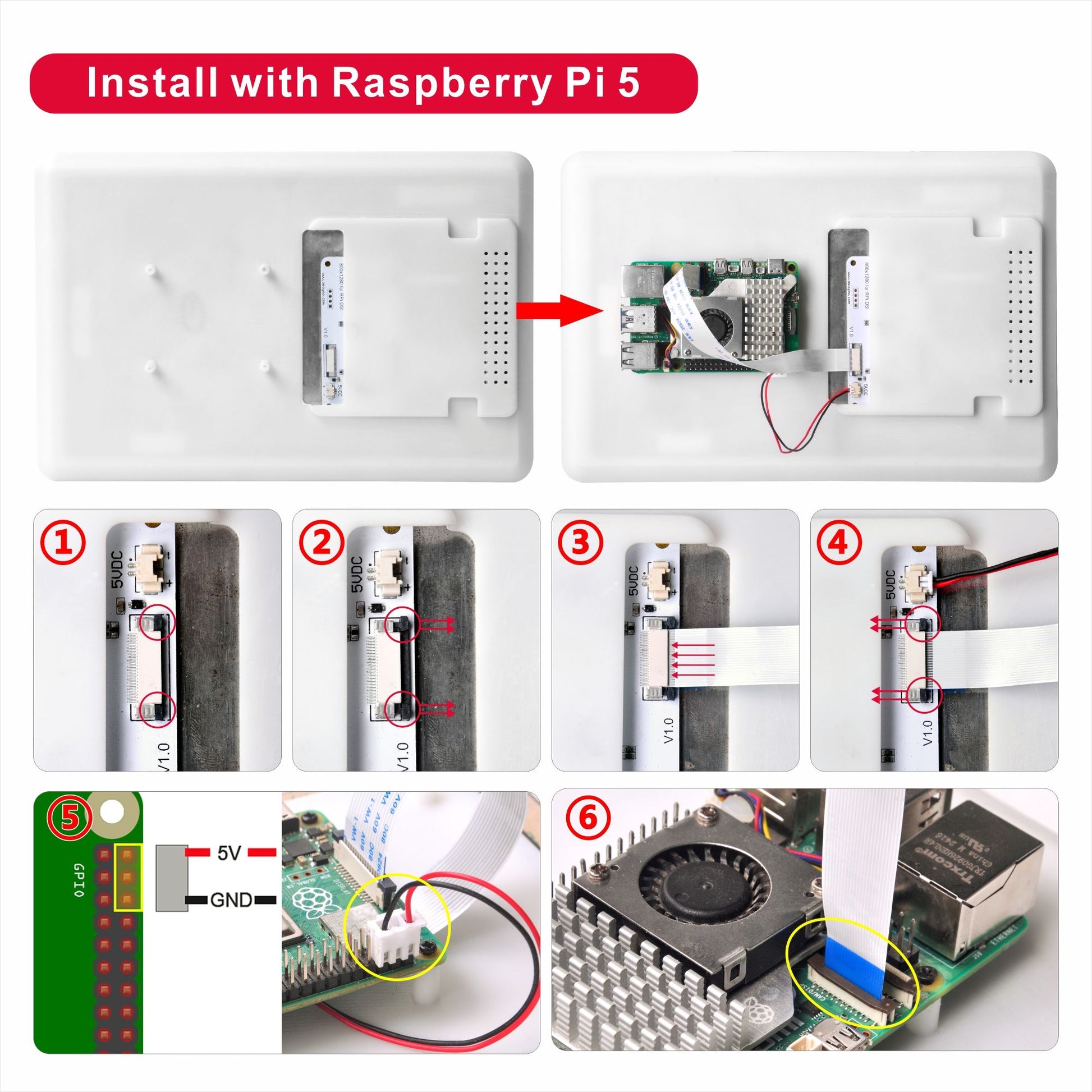

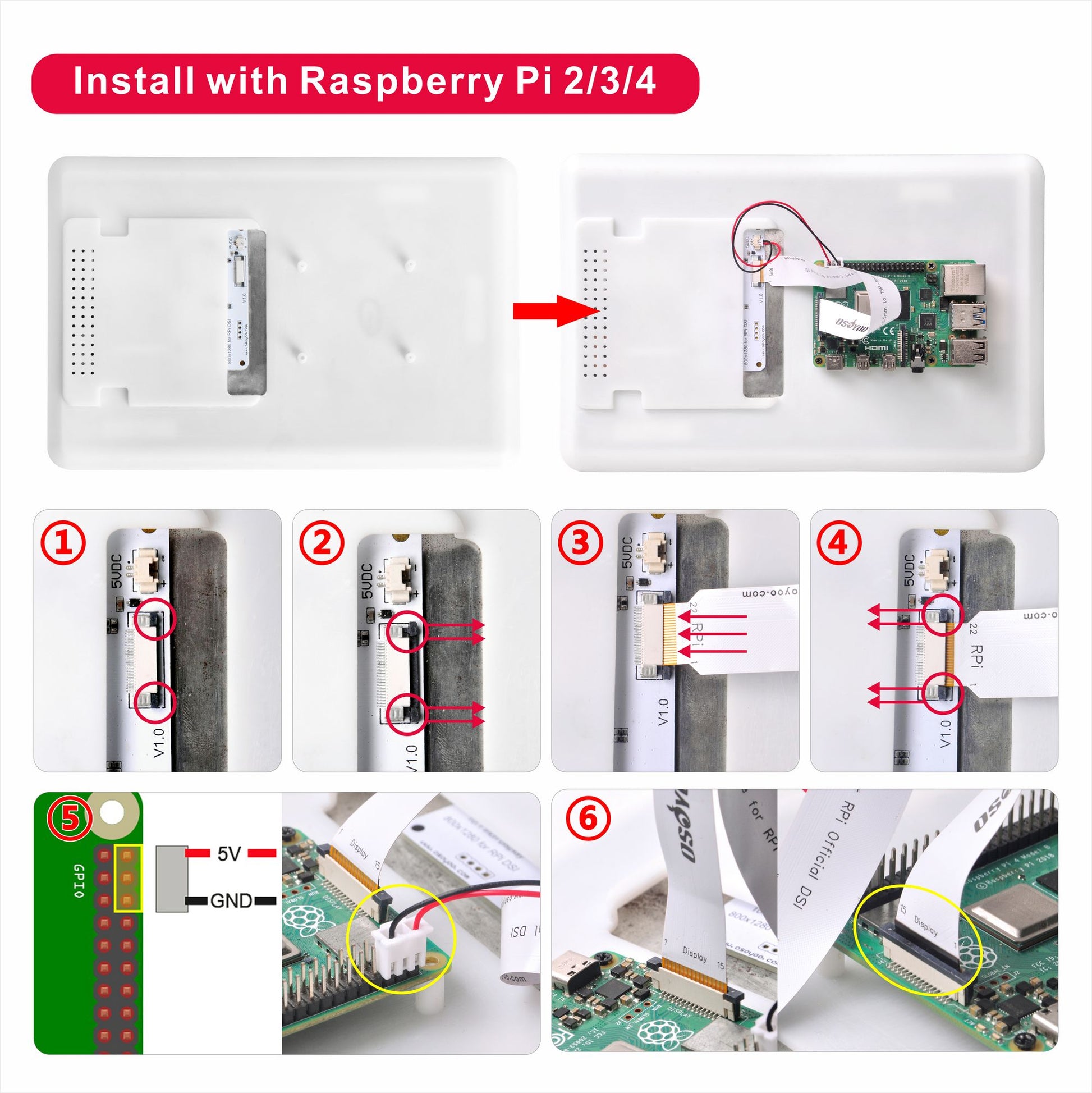

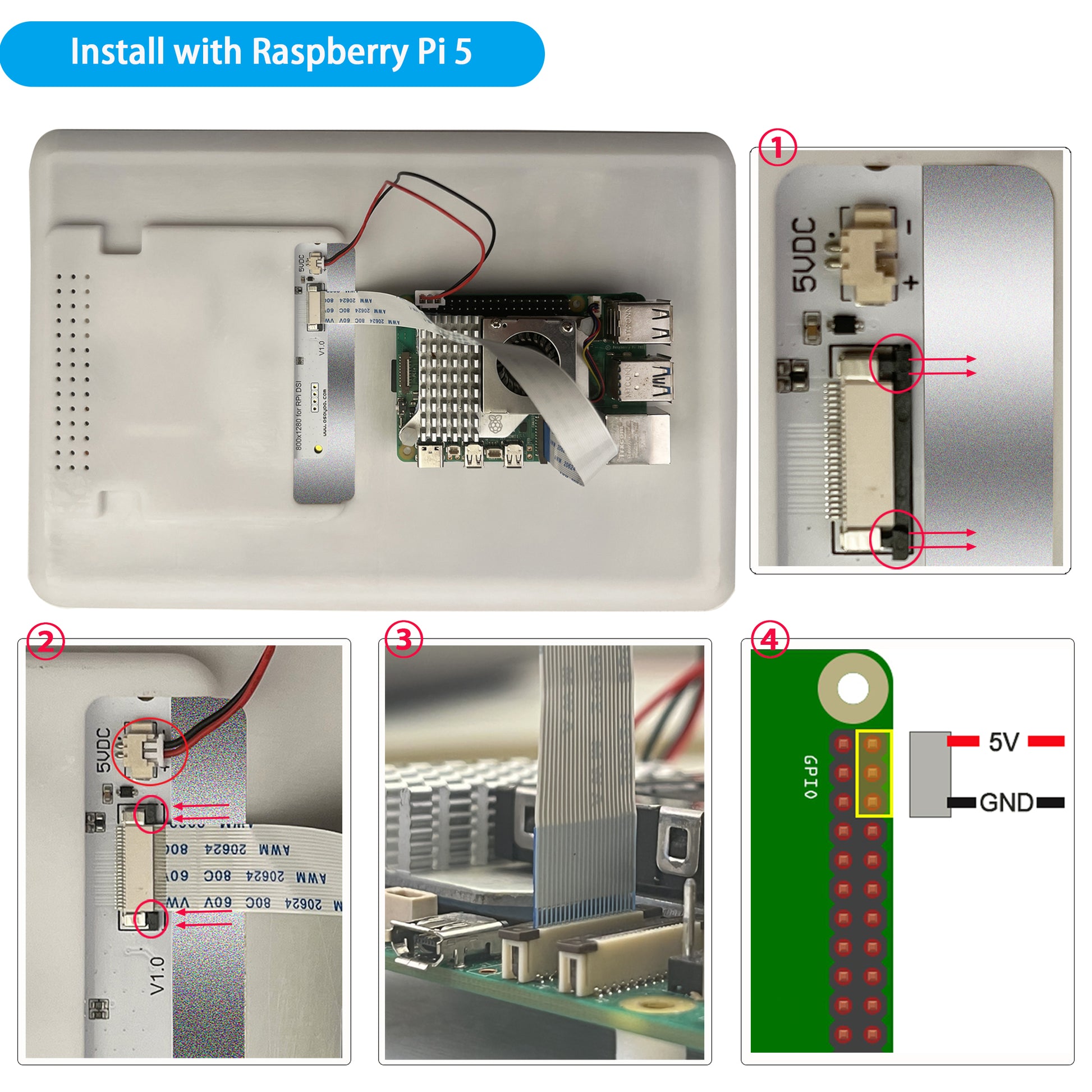

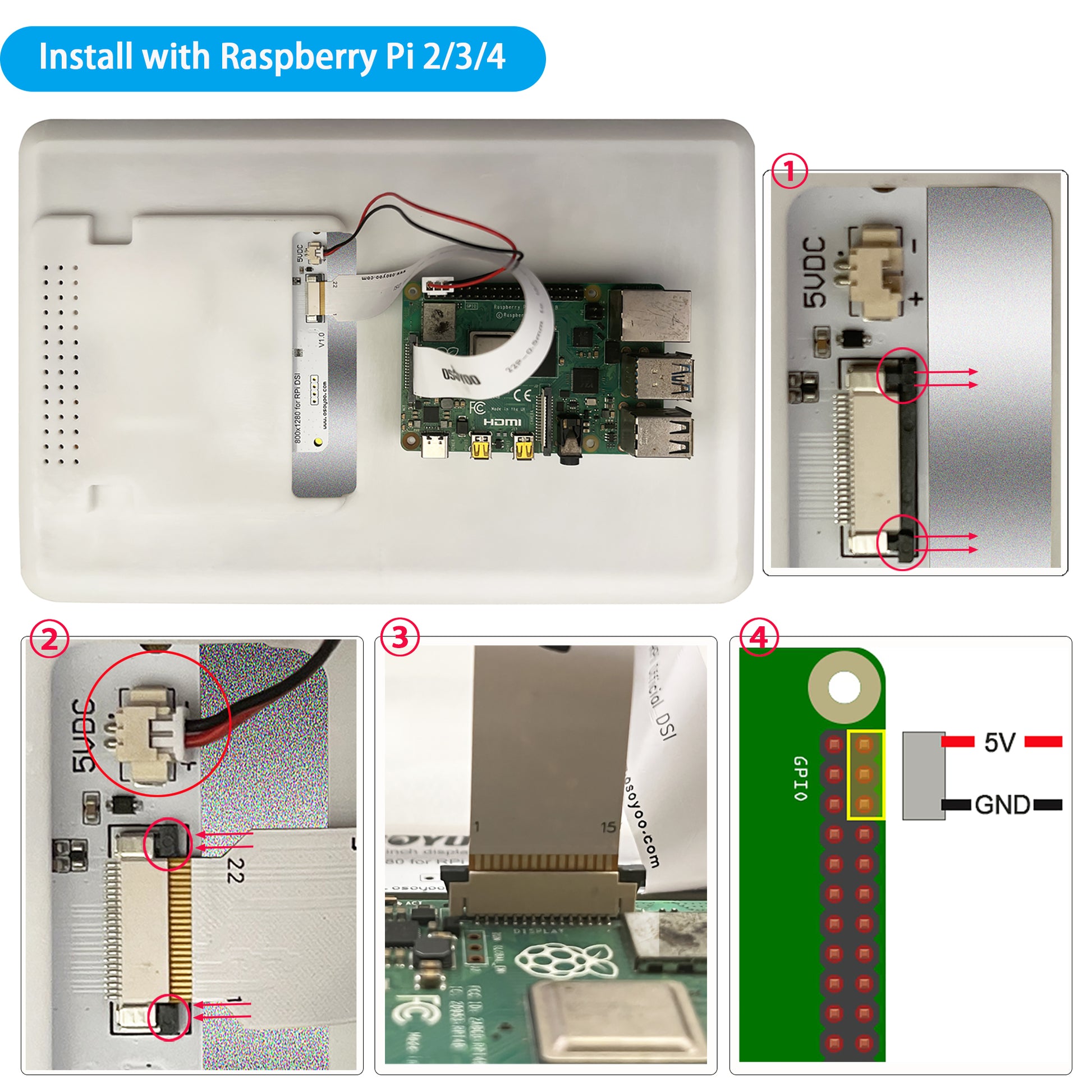

Set up in 3 steps

1. Connect the DSI cable to your Raspberry Pi's DSI port: 22-pin to 22-pin cable for Raspberry Pi 5, 15-pin to 22-pin cable for Raspberry Pi 4/3.
2. Connect the 2-pin power cable to the GPIO 5V and GND pins.
3. Install the OSOYOO driver for your OS by following the guide. It takes a few minutes.

Please note

• Before connecting, shut down your Raspberry Pi and disconnect it from external power.
• Make sure the DSI cable is connected in the correct direction, and that 5V power is supplied through the GPIO pins. If a cable comes loose, pull the connector's locking mechanism forward, insert the ribbon cable with the metal contacts facing toward you, then push the locking mechanism back.
• Input current must be ≥ 0.5A; below that the screen may fail to start or display abnormally, and prolonged abnormal operation may permanently damage the device.
• Operate in a dry environment at 0–50 °C. Do not expose the screen to water or moisture, place it on a conductive surface while in operation, or expose it to excessive heat. Take care not to fold or strain the ribbon cable, and do not cross-thread screws — it can cause irreparable damage and void the warranty.

Volume pricing for projects and OEMs

• Order value $500 – $1,999: 10% off
• Order value $2,000 – $9,999: 15% off
• Order value $10,000+: 18% off

Tell us your board, OS, quantity and timeline. Email support@osoyoo.store for a quote.

Compliance: CE, FCC and UL certification is in progress. Contact us for the latest status.
