Product description
Shipping & Return

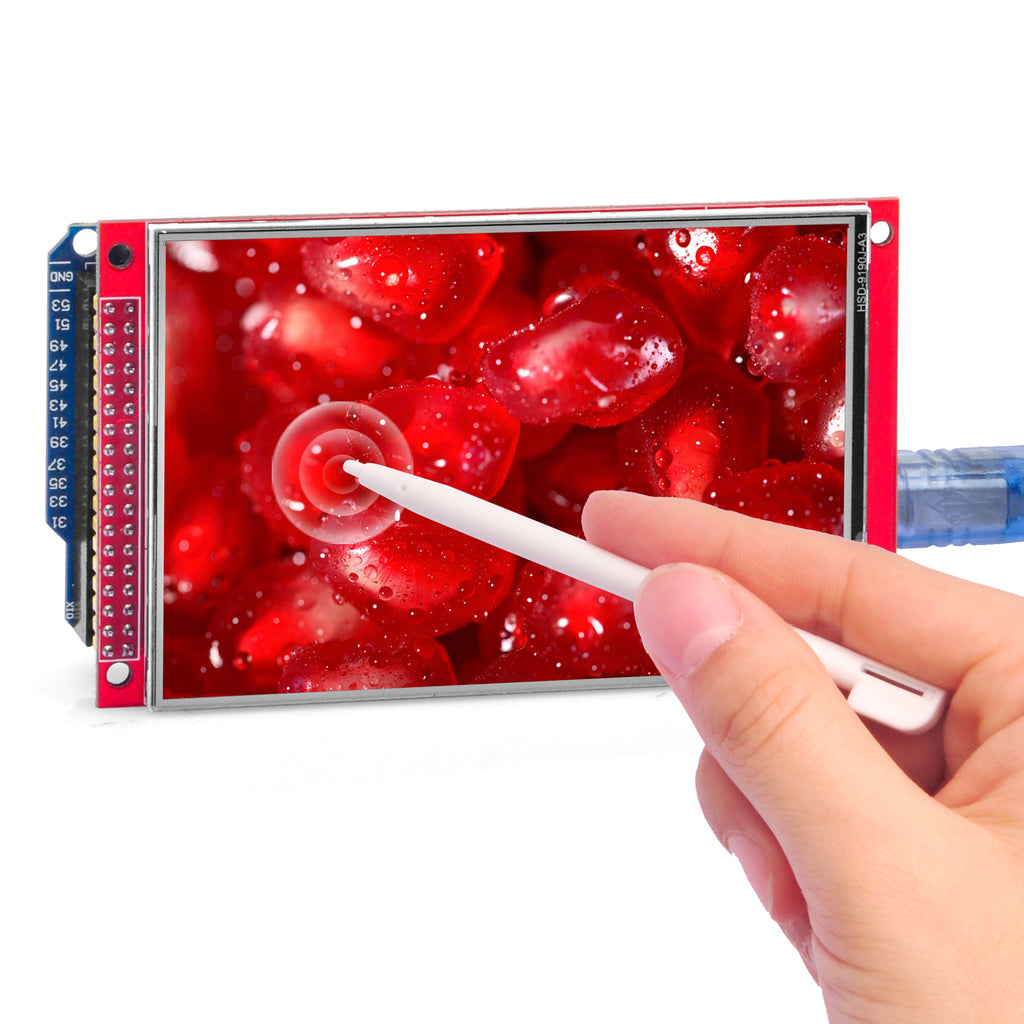

  • 【Plug-in Use】Support for Arduino Mega2560 direct plug-in use and Support touch function.

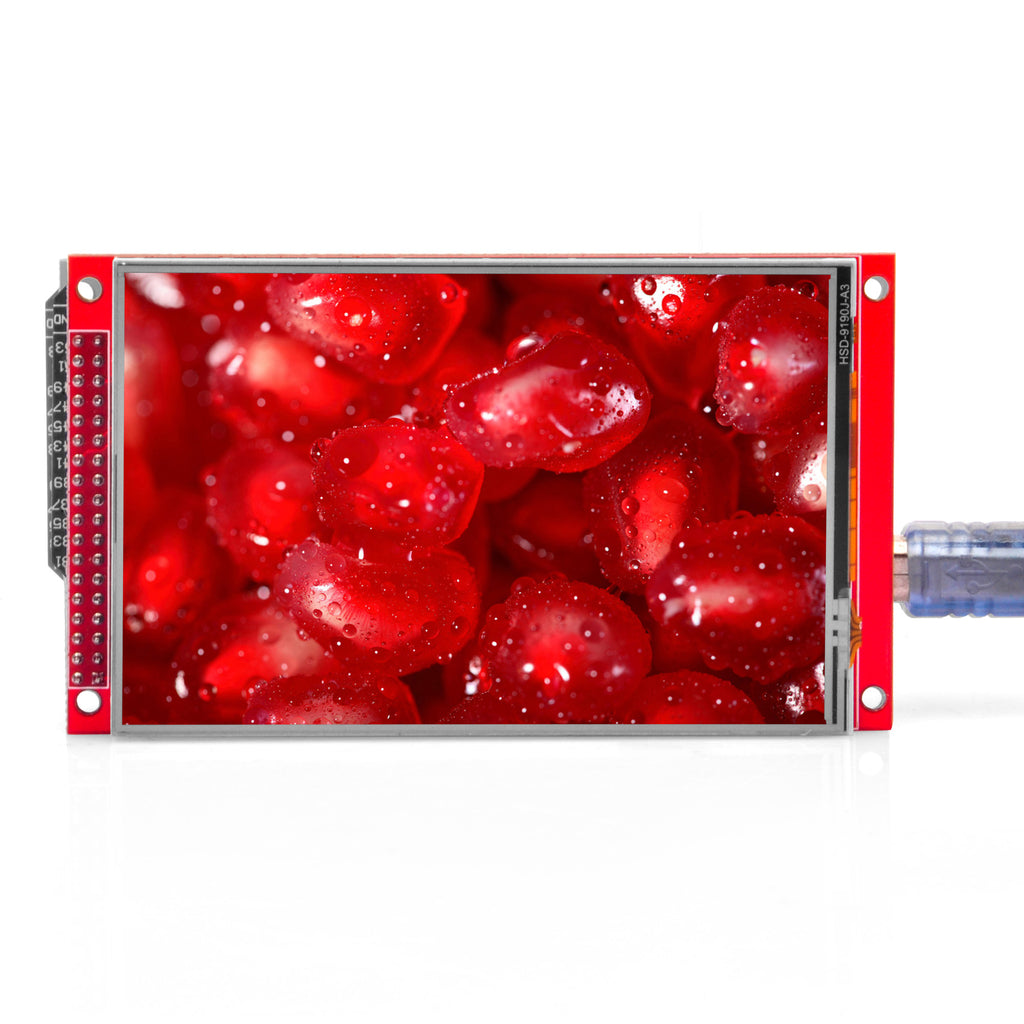

  • 【SD Card&Color Screen】Easy to expand the experiment with SD card slot.320x480 resolution for clear display,3.95 inch color screen, support 16bit RGB 65K color display, display rich colors.

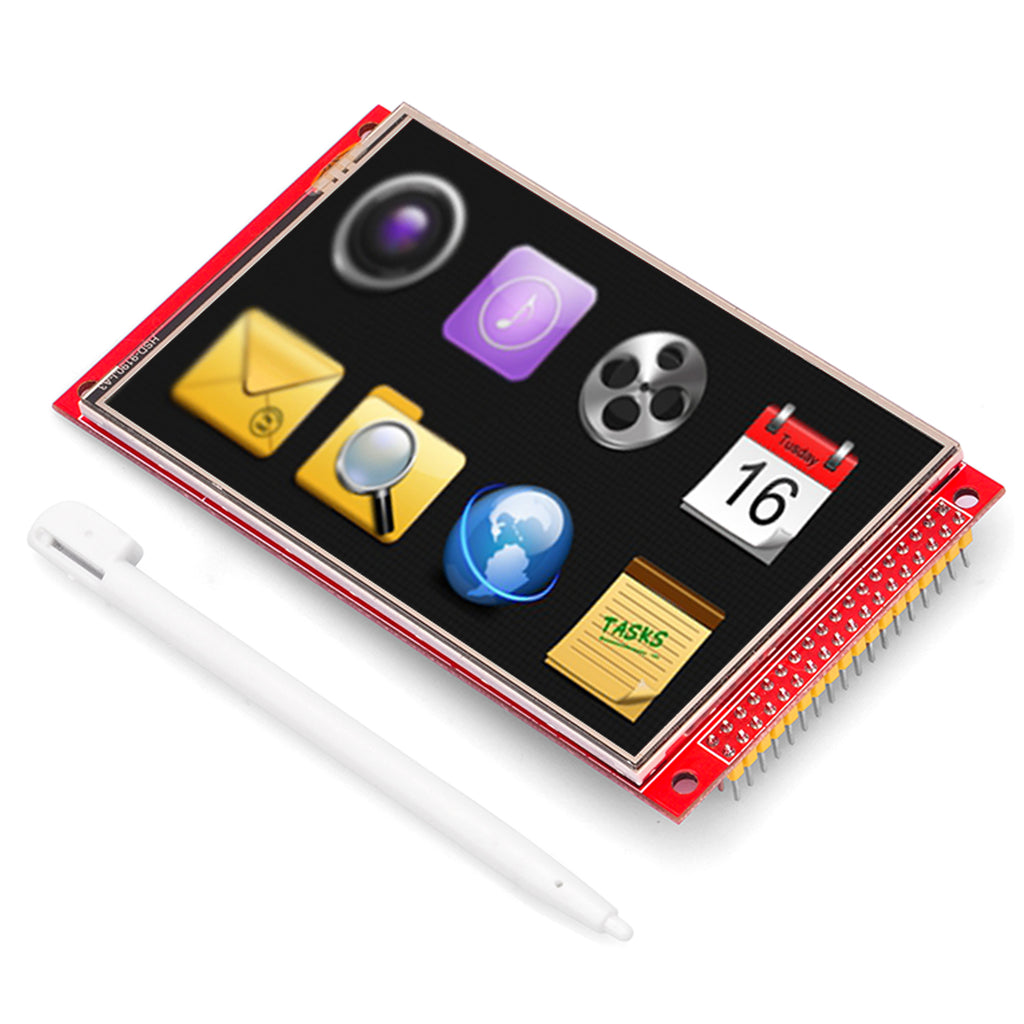

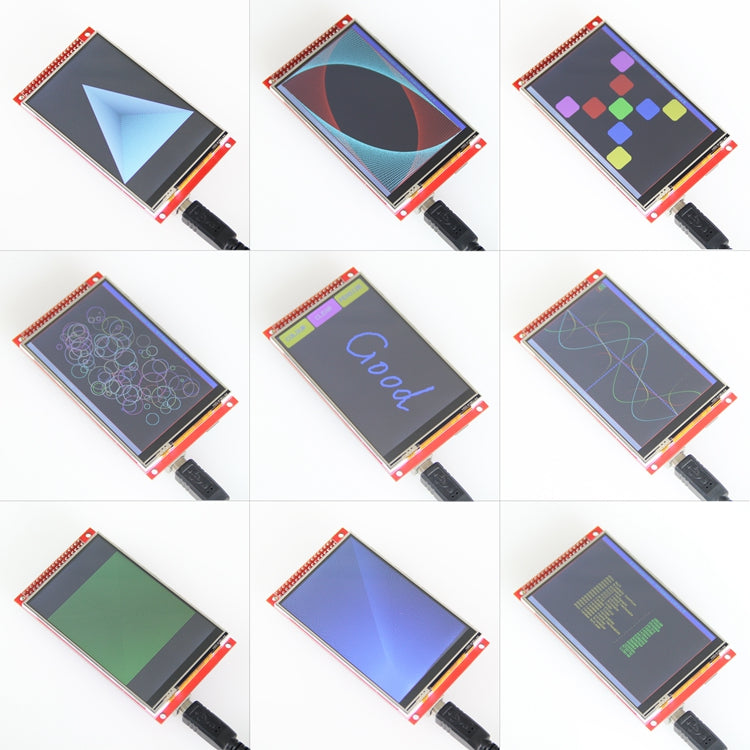

  • 【Rich Display】It come with touch pen and support comprehensive test included graphics drawing, lines, text filling test display in our webstie.
  • 【VCC Supply Voltage】Supports 8-bit and 16-bit parallel bus transmission with fast transfer speed,On-board 5V/3.3V level shifting IC, compatible with 5V/3.3V operating voltage.
  • 【Rich Sample Program】Provides an library with a rich sample program,Available on C51 and STM32 platforms with a rich sample program.Provide underlying driver technical support,Military-grade process standards, long-term stable work.

  • Tutorial Link: https://osoyoo.com/?p=38632

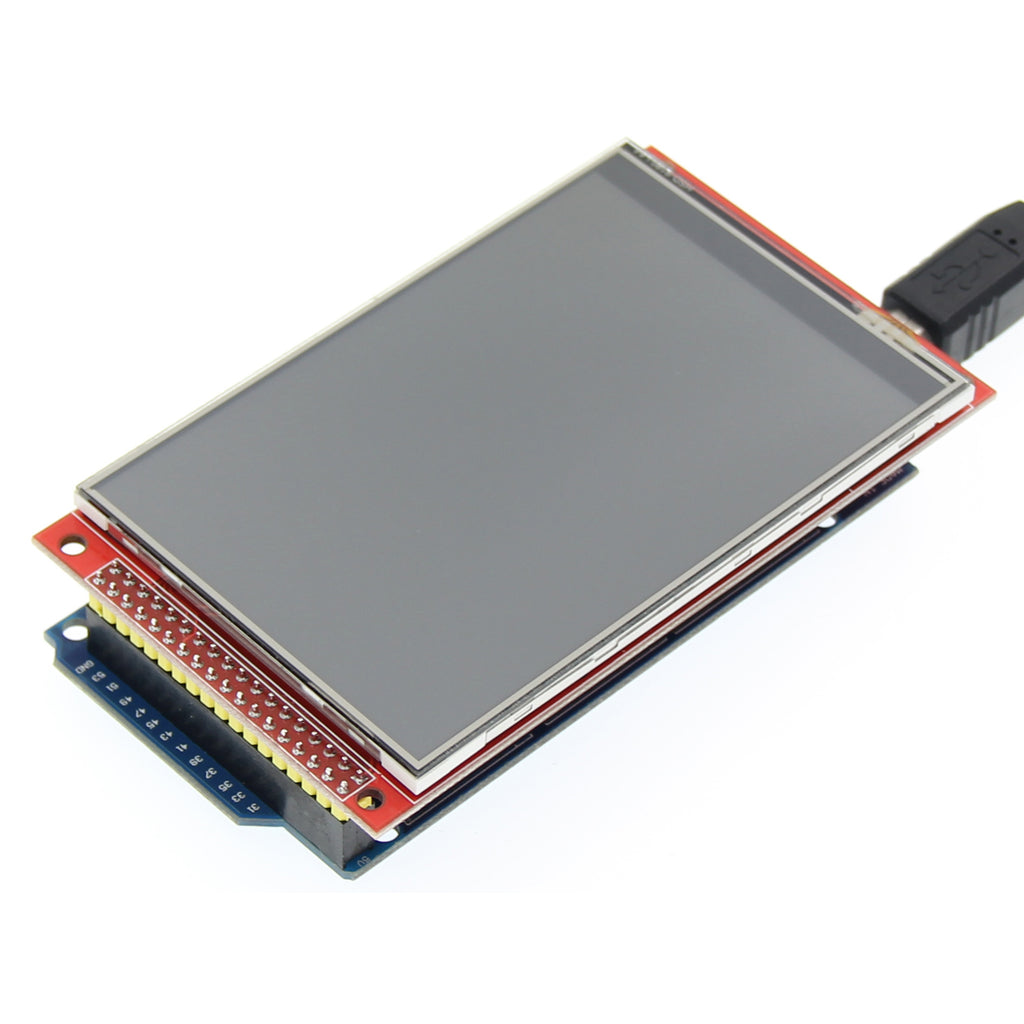

    This module can be directly plugged into the Arduino mega2560 and no need to manually wire.

    Our test program support for Arduino IDE used in this test program is 1.8.5.Please use the same or higher version for testing.

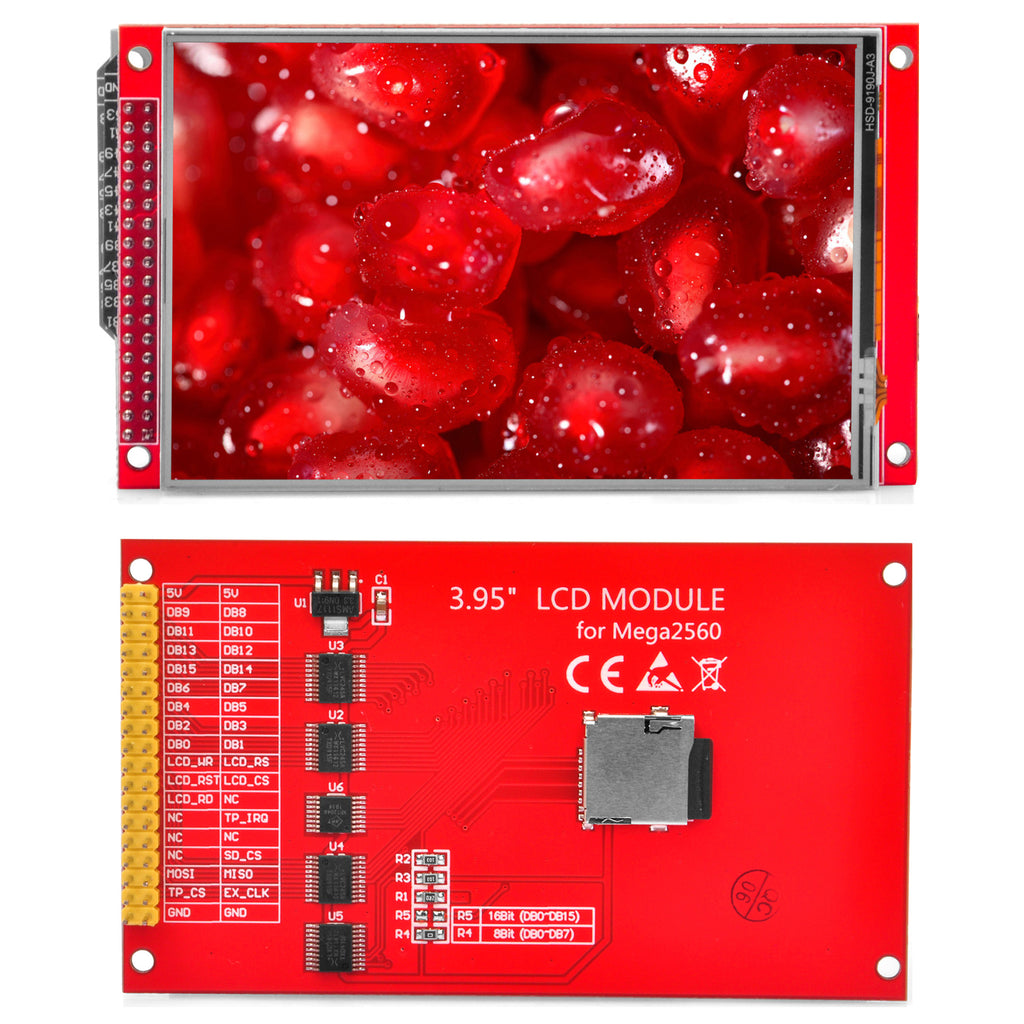

    Suppot SD Card,480x320 pixel resolution and clearly display.
    Support for Arduino libraries and lots of test program in our webstie.
    Support 8-bit and 16-bit data bus mode SWITHCING(8 bit default).
    5V/3.3V level switch IC onboard,compatible with 5V/3.3V working voltage.


    Package: 4 inch TFT screen x1 and touch pen x1
    Dimensions:4 inch (3.95 inch)
    MCU:AVR_ATmega2560
    Type: TFT
    Chip: ILI9488
    Resolution: 480*320 (Pixel)
    Interface: 16Bit parallel interface
    Active display area: 83.52x55.68(mm)

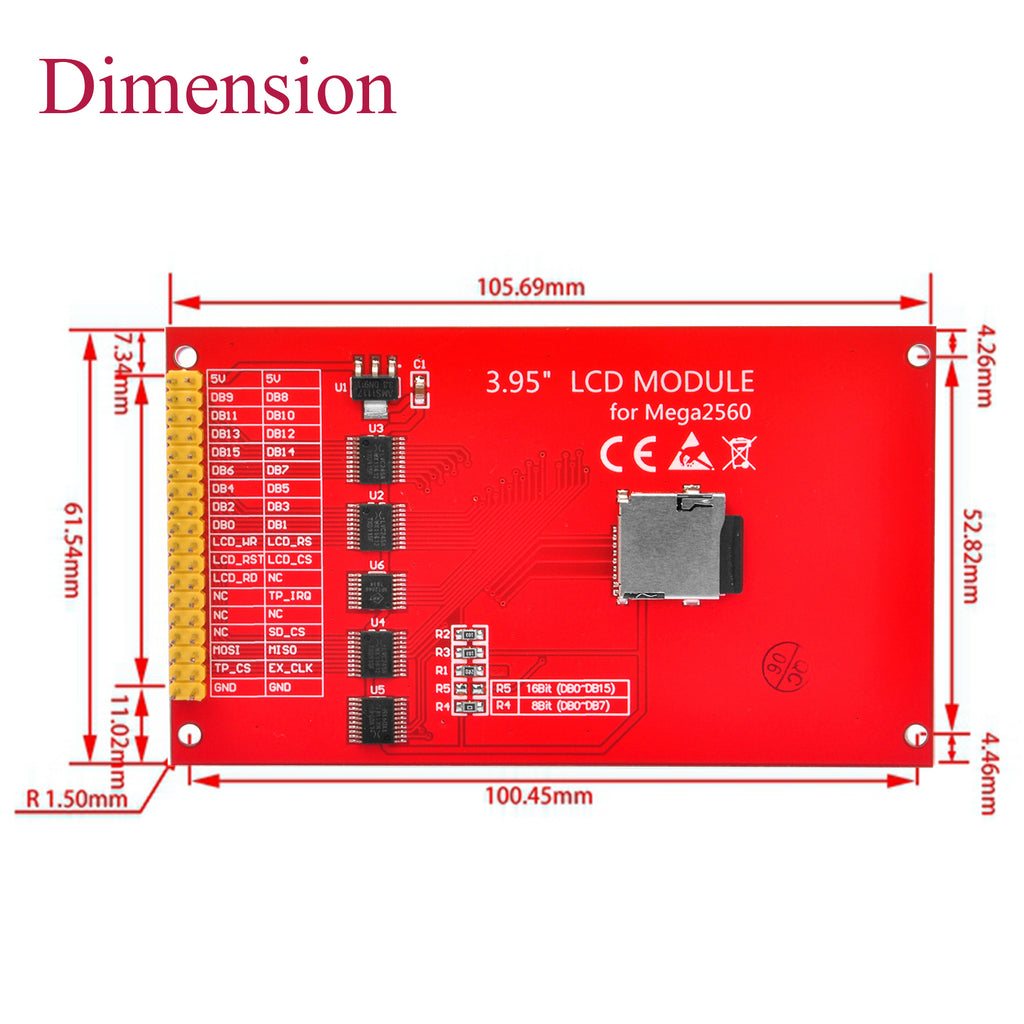

    PCB dimensions:61.54x105.69 (mm)
    Back lights: 6 chip HighLight white LEDs
    Work voltage: 3.3V/5V
    Power consumption: 5V@150MA
    Weight: 64(g)
