OSOYOO 3.5 inch LCD Touch Screen Display SPI 128MHz 60Hz TFT Monitor for Raspberry Pi 4 , Pi 3B+ ,Pi 3,Pi 2,Pi Zero

OSOYOO 3.5 inch LCD Touch Screen Display SPI 128MHz 60Hz TFT Monitor for Raspberry Pi 4 , Pi 3B+ ,Pi 3,Pi 2,Pi Zero

Regular price $19.99 USD
Sale price $19.99 USD Regular price $30.99 USD
Unit price
Product description
Shipping & Return
  • Support 128MHz SPI signal input ; Refresh Rate is 60Hz; Screen can display stable without Flicker , but we don't suggest you buy it for gaming.

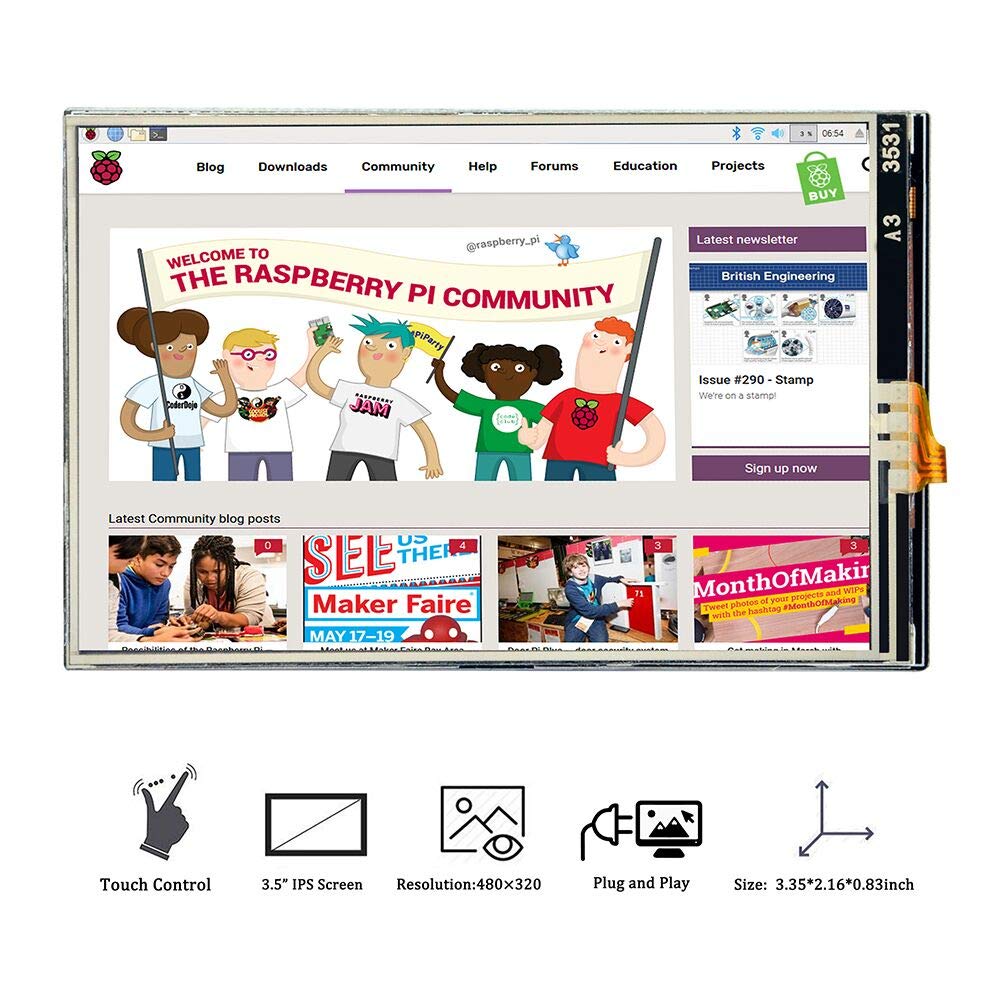

  • 3.5-inch touchscreen works with fingertips. The resolution is 320*480, and it can be adjusted by the software.
  • Compatibel OS: Raspbian, Kali and Ubuntu. SPI interface for portable or miniature projects.
  • Easy to setup and start-up.It comes with a user manual,please followed the link in the user manual to download driver&image. Raspberry Pi and microSD card are NOT included in package.
  • Support double screen display,but need install the FBCP software driver firstly.

Online-Tutorial: http://www.osoyoo.com/?p=25028

It's powered by the gpio pins
Compatibel OS: Raspbian, Kali and Ubuntu.we offer driver and image.
Original Resolution: 480*320
Interface: SPI
Refresh rate: 60Hz,Support play video.
LCD Type:TFT
The speed interface of SPI can up to 128M,It can display stable without Flicker

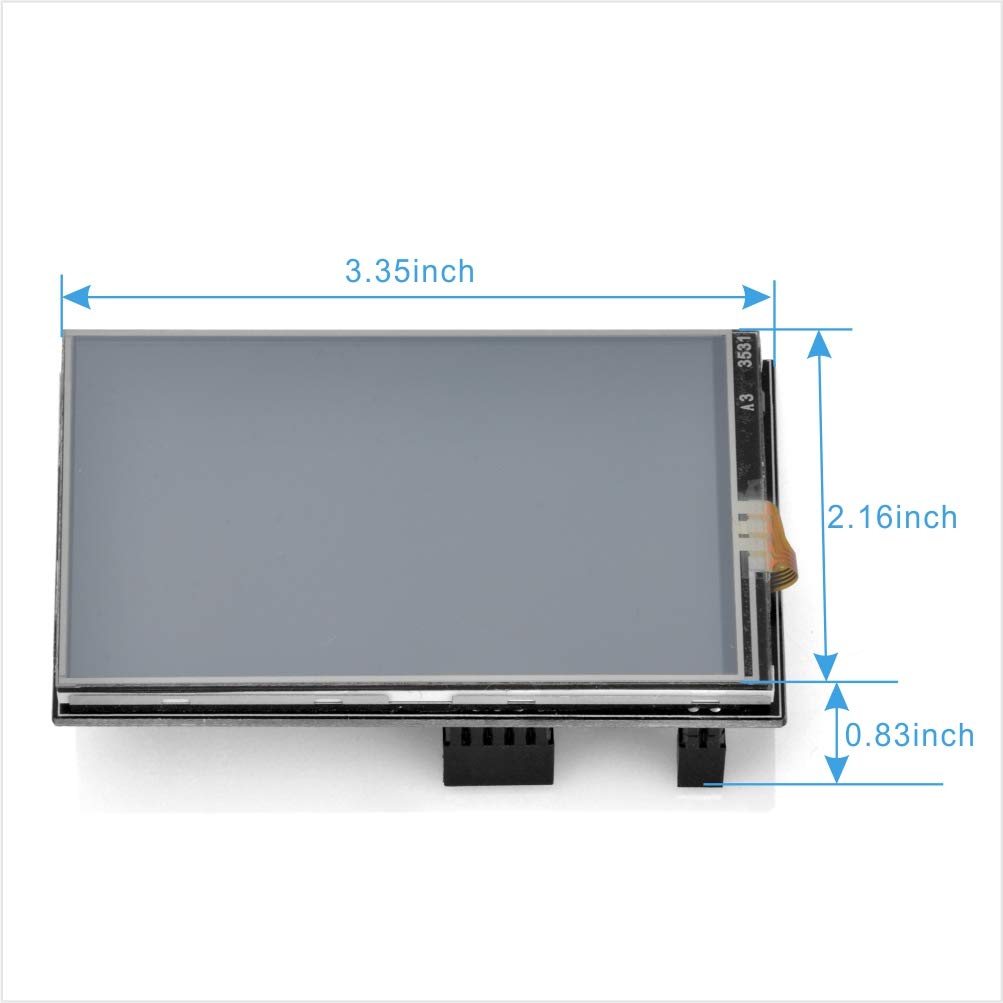

Size: 3.35*2.16*0.83inch

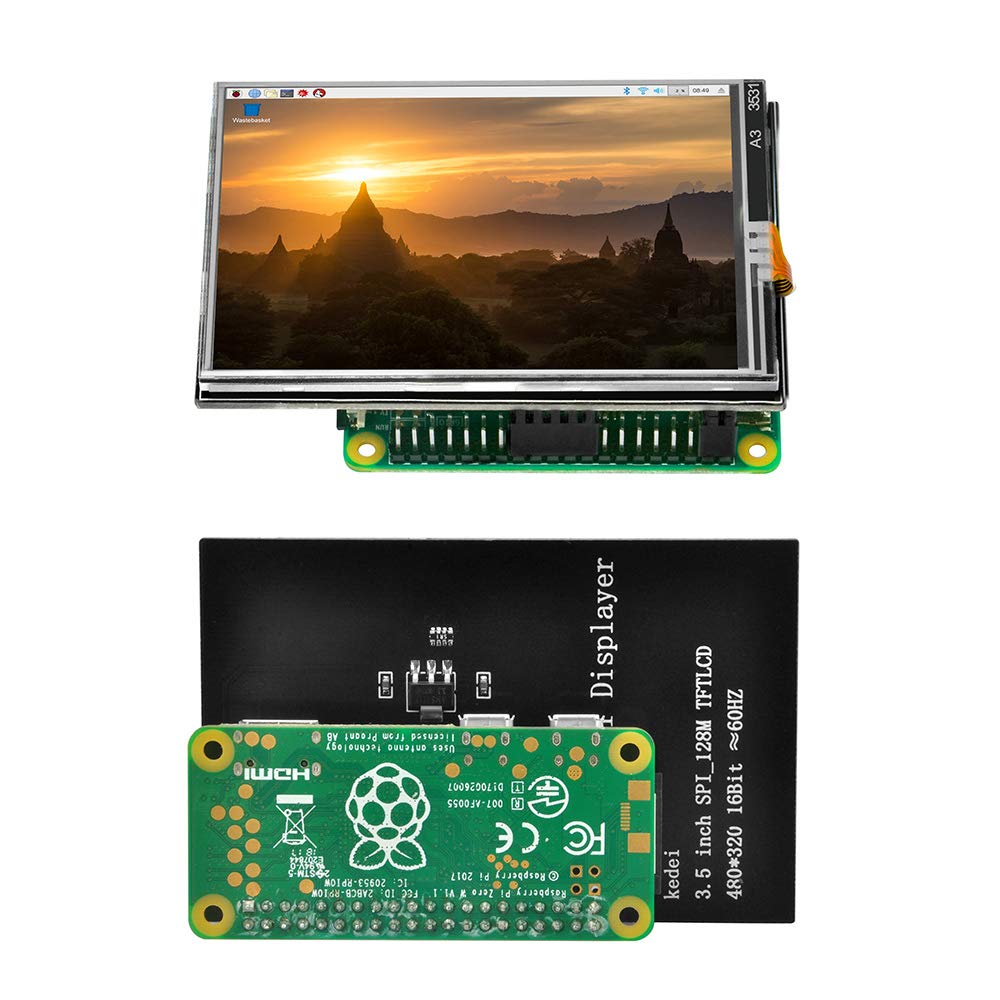

Same size as the Raspberry Pi, perfectly compatible and can be directly inserted into any version of the Raspberry Pi (Raspberry Pi ZeroW, A, A+, B, B+, 2B, 3B, 3B+)
Raspberry Pi Board not included.

This screen can be used for a multitude of purposes:
1.screen for Raspberry Pi
2.As a monitor to tell you status of a remote project.
3.Be used in DIY projects.such as digital door viewer,a wrist mounted computer, robot projects.

FAQ:
Can I use my own OS (image)to run?-
---No

Does the driver work with noob raspbian?
----Yes, just follow the instruction sheet to download and install the driver would work.


Support double screen display?
--Yes.but need install the FBCP software driver firstly.

Can adjust the resolution by the software?
--Yes

Does the screen can rotate?
--Yes, it can rotate 90°, 180°,270°.

Is there a way to adjust the brightness?
--No.

Support RetroPie?
--No

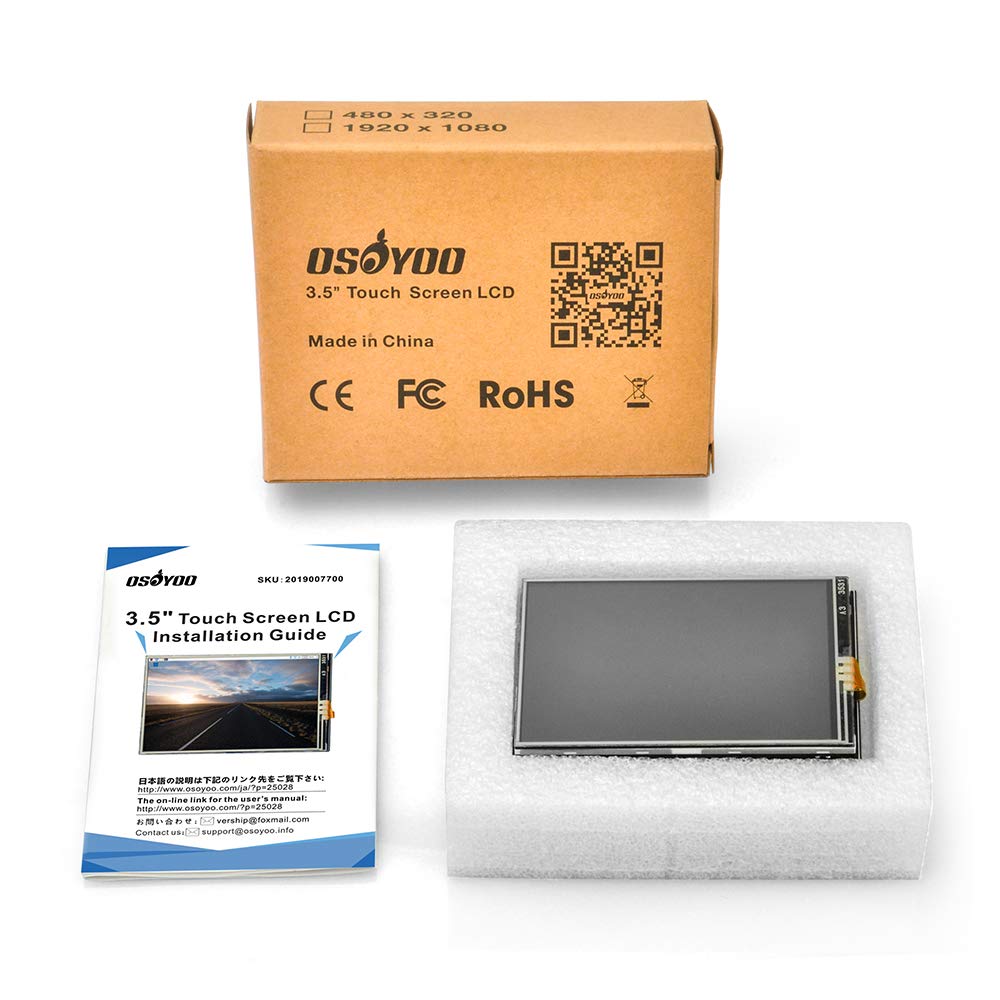

Packing list:
1x 3.5 inches touch screen
1x user manual
Note: there's a thin translucent film on the screen,you can move it when you use.
